Cylinder Block Cooling System Cap, Removing And Installing: Installing

-- Clean the sealing surfaces.

-- Apply sealant around the cap -1-.

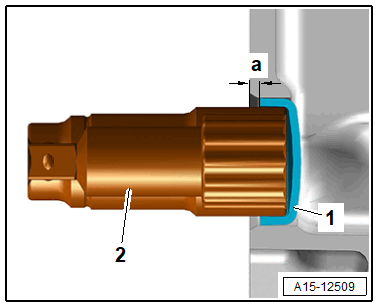

Fig 1: NO CONTENT

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Refer to the Electronic Parts Information (ETKA) for the correct sealant.

-- Attach the cap -1- parallel to the hole and drive in using a suitable thrust piece -2-.

Condition

• The determined installation depth -a- must be met.
