Vehicle Identification Number (VIN)

NOTE:

If components with a VIN are replaced in the damage claim, the servicing must be documented according to the legal regulations applicable in that market.

The VIN must be added to the new part.

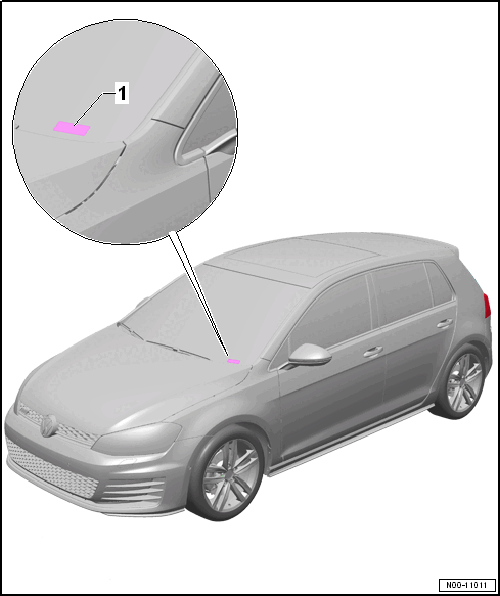

Fig 1: Vehicle Identification Number Location (1 of 2)

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

VIN at the Bottom of the Windshield Frame on the Left Side

NOTE:

The VIN is stamped at three additional locations on the vehicle.

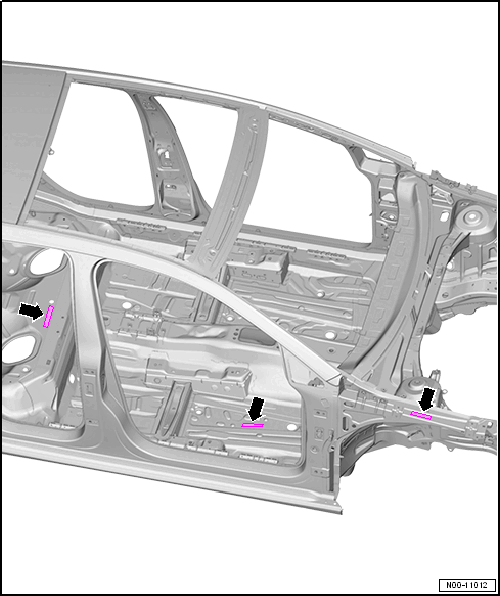

Fig 2: Vehicle Identification Number Location (2 of 2)

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Pfeil -
VIN on the Rear Floor Panel
Pfeil -
VIN on the Right Front Floor Panel
Pfeil -
VIN on the Top of the Longitudinal Member on the Right Side
