Molded Foam Parts
Various hollow body areas in this vehicle are equipped with molded foam parts.
The molded foam parts reduce the transfer of driving noises in the vehicle interior.
Exact positions of molded foam parts are depicted at the beginning of the respective repair descriptions.
The molded foam replacement parts will react and foam only when the temperature is approximately 180 °C (356 °F). It is not possible to attain this temperature under workshop conditions. For this reason, use Butyl Sealing Cord:AKL 450 005 05 or Two-Part Filler Foam:D 506 KD1 A3 for positioning the molded foam parts when performing a repair.

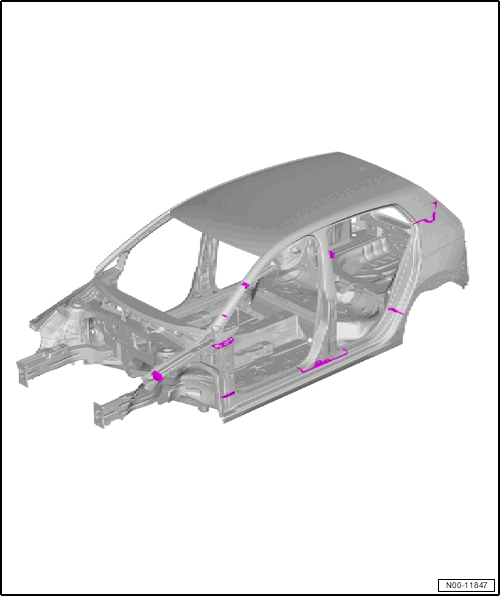

Overview - Molded Foam Part
If a repair is required, proceed as follows:
-- Remove any remaining foam from the vehicle.
-- Apply corrosion protection. Refer to General Information .
Prerequisite
Perform for example cutting, fitting, corrosion protection measures to prepare the metal part to be replaced so that it is ready for installation.
Molded Foam Part, Replacing
-- Either reuse the Molded Foam Part or cut it from the universal Partition:000 864 663 .
-- Secure the Molded Foam Part to the body using Butyl Sealing Cord:AKL 450 005 05 .
-- Then apply either the Butyl Sealing Cord:AKL 450 005 05 or the Two-Part Filler Foam:D 506 KD1 A3 to the Molded Foam Part.
-- Secure the new part while gently pressing on it around the Molded Foam Part until it makes contact and then weld it in.
The Two-Part Filler Foam:D 506 KD1 A3 hardens within 25 minutes.
Do not perform any gas-shielded welding or soldering within 15 mm of the Molded Foam Part.
Maintain a minimum distance of 15 mm to the Molded Foam Part and Two-Part Filler Foam:D 506 KD1 A3 when performing any gas-shielded welding or soldering work.
-- After painting the vehicle, apply cavity sealant in the repair area.
