Center Body

Center Body View

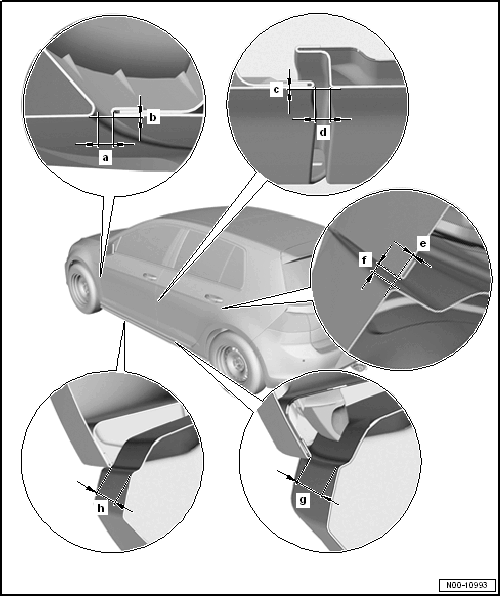

Fig 1: Center Body Dimension And Measurement Points

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

1. a -

   3.5 mm ± 0.5 mm

   • Gap dimension between fender and front door
2. b -

   0.0 mm - 1.0 mm

   • Height difference from fender to front door
3. c -

   0.0 mm + 1.0 mm

   • Height difference from front door to rear door
4. d -

   4.2 mm ± 0.5 mm

   • Gap dimension between the front door and rear door
5. e -

   0.0 mm + 1.0 mm

   • Height difference from rear door to side panel
6. f -

   3.5 mm ± 0.5 mm

   • Gap dimension between the rear door and side panel
7. g -

   5.5 mm ± 0.8 mm

   • Gap dimension between the rear door and side sill
8. h -

   5.4 mm ± 0.8 mm

   • Gap dimension between the front door and side sill

Panorama Roof View

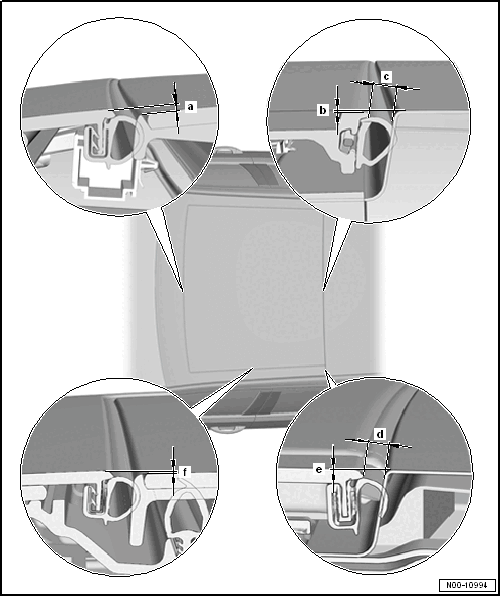

Fig 2: Center Body Dimension And Measurement Points (Panorama Roof View)

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

1. a -

   -1.8 mm

   • Sliding sunroof front trim to glass panel height difference
2. b -

   0.2 mm

   • Glass panel to roof height difference
3. c -

   4.9 mm

   • Gap dimension between glass panel and roof
4. d -

   4.6 mm

   • Gap dimension between sliding sunroof front trim and roof
5. e -

   0.0 mm

   • Sliding sunroof front trim to roof height difference
6. f -

   -0.6 mm

   • Glass panel to sliding sunroof front trim height difference
