Body Rear

Rear Body View

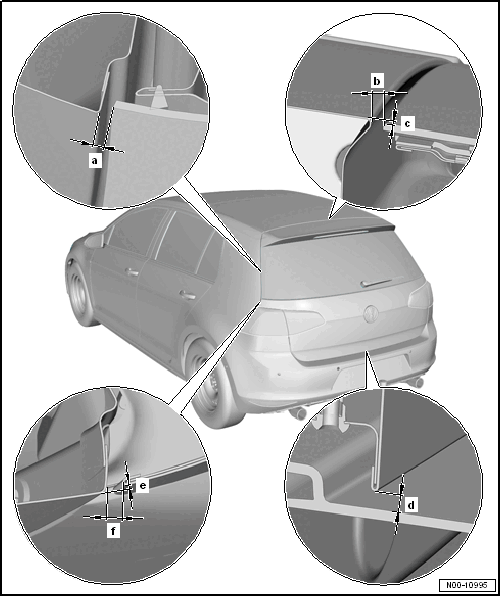

Fig 1: Back Door Body Gap Dimension Measurement

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

1. a -

   4.0 mm ± 0.5 mm

   • Gap dimension between the side panel and rear window
2. b -

   5.0 mm ± 0.5 mm

   • Gap dimension between roof and rear lid
3. c -

   -1.2 mm ± 0.8 mm

   • Roof to rear lid height difference
4. d -

   5.0 mm ± 0.5 mm

   • Gap dimension between the rear lid and rear bumper
5. e -

   -1.4 mm ± 0.8 mm

   • Side panel to rear lid height difference
6. f -

   4.5 mm ± 0.5 mm

   • Gap dimension between side panel and rear lid
