Body Front

Front End View

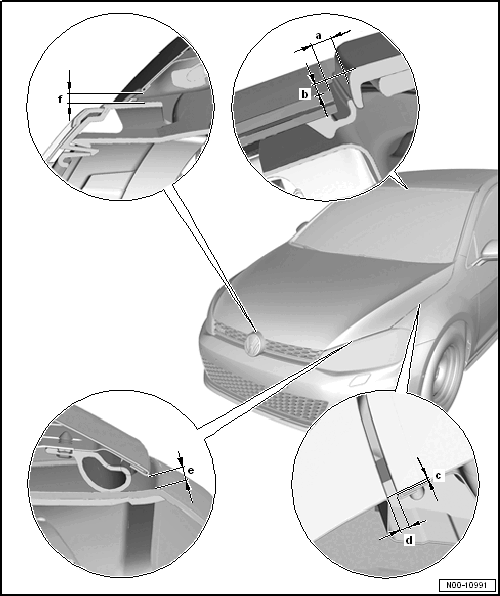

Fig 1: Front Body Dimension And Measurement Points

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

1. a -

   2.5 mm ± 0.5 mm

   • Gap dimension between the windshield and roof
2. b -

   - 2.7 mm ± 0.5 mm

   • Height difference from the windshield to roof edge
3. c -

   - 0.6 mm ± 0.5 mm

   • Height difference from the hood to the fender
4. d -

   3.5 mm ± 0.5 mm

   • Gap dimension between the hood and the fender
5. e -

   5.0 mm ± 0.5 mm

   • Gap dimension between the hood and headlamp
6. f -

   4.5 mm ± 0.5 mm

   • Gap dimension between the hood and radiator grille
