Rear Floor Assembly

Rear Floor Assembly Body Dimensions

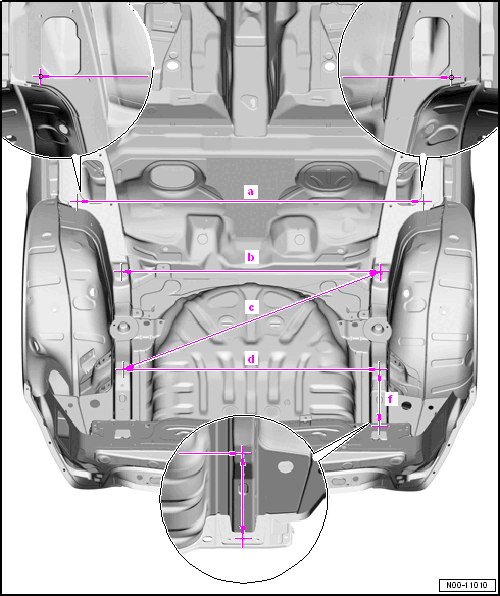

Fig 1: Rear Floor Assembly Body Dimension Measurement Points

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

1. a -

   1325 mm ± 2.0 mm

   • Body dimension between the outer holes and the horizontal rear axle mounts
2. b -

   1000 mm ± 2.0 mm

   • Body dimension between the assembly mounts and the horizontal rear longitudinal member
3. c -

   1085 mm ± 2.0 mm

   • Body dimension between the assembly mounts and the diagonal rear longitudinal member
4. d -

   990 mm ± 2.0 mm

   • Body dimension between the assembly mounts and the horizontal rear longitudinal member
5. f -

   270 mm ± 2.0 mm

   • Body dimension between the assembly mounts and rear longitudinal member cross panel
