Body Rear

Body Dimension for Rear Lid Opening

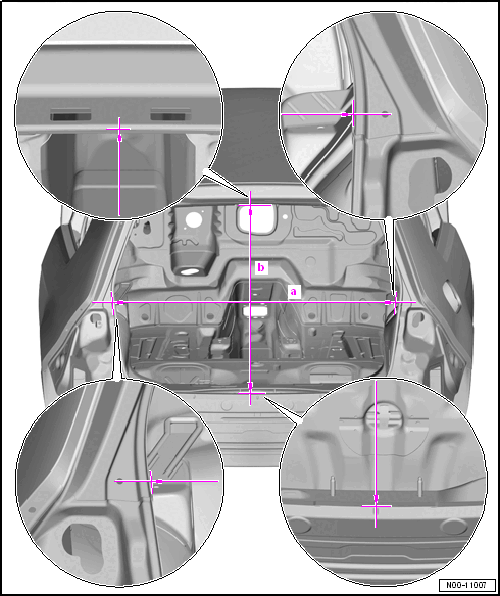

Fig 1: Back Door Opening Body Dimension And Measurement Points

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

1. a -

   1140 mm ± 2.0 mm

   • Body dimension between the left and right flanges
2. b -

   800 mm ± 2.0 mm

   • Body dimension between the upper and lower flange of the rear lid opening
