Windshield Spray Pattern, Checking
WARNING: This page is about a different car, the 2025 Audi S3, 2025 Audi RS 3, and 2025 Audi A3 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
The spray pattern must meet the following specifications:
- Mirror image according to the specifications
- Even, precise spray jets

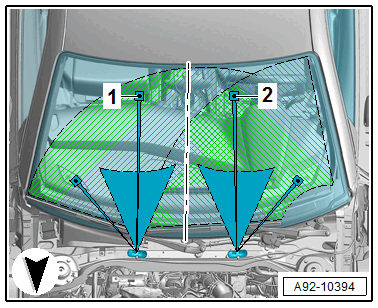

- Driver side washer nozzle adjustment: point of impact -2- of the center stream is maximum 15 cm under the upper window edge and maximum approximately in the center of the windshield.
- Front passenger side spray nozzle adjustment: point of impact -1- the hight of the driver side points of impact or can depending on the spray pattern deviate downward (symmetry not required).
- Impact zone of the center spray jet: approximately 15 cm to 45 cm from the upper edge of the windshield
Procedure:
-- Activate the windshield washer system and assess the spray pattern.
-- If the spray pattern does not meet the specifications, adjust the spray nozzles. Refer to WINDSHIELD SPRAY NOZZLES, ADJUSTING .
