Upper FOOTWELL CROSSMEMBER, Replacing: Notes

WARNING: This page is about a different car, the 2025 Audi S3, 2025 Audi RS 3, and 2025 Audi A3 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

Sportback and Sedan

Overview

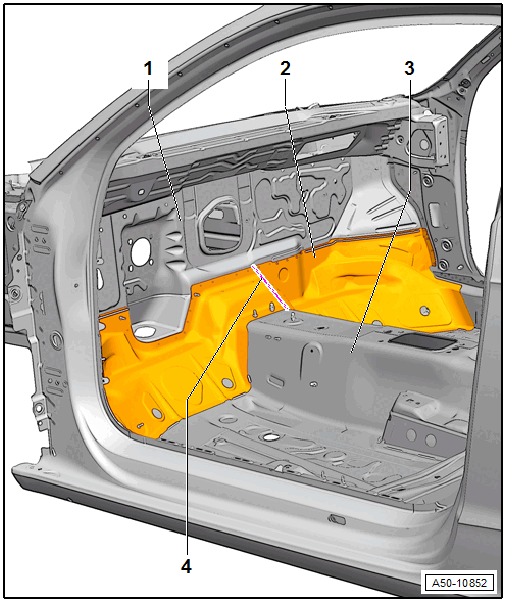

Fig 1: Upper Footwell Crossmember Separation Cut And Adjacent Component Location
GWWA50-10852Courtesy of AUDI OF AMERICA, LLC
  1. Bulkhead
  2. Upper Footwell Crossmember
  3. Tunnel
  4. Crossmember Separation Cut
