Outer FOOTWELL CROSSMEMBER, Replacing, Partial Replacement: Notes

WARNING: This page is about a different car, the 2025 Audi S3, 2025 Audi RS 3, and 2025 Audi A3 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

Sportback and Sedan

Overview

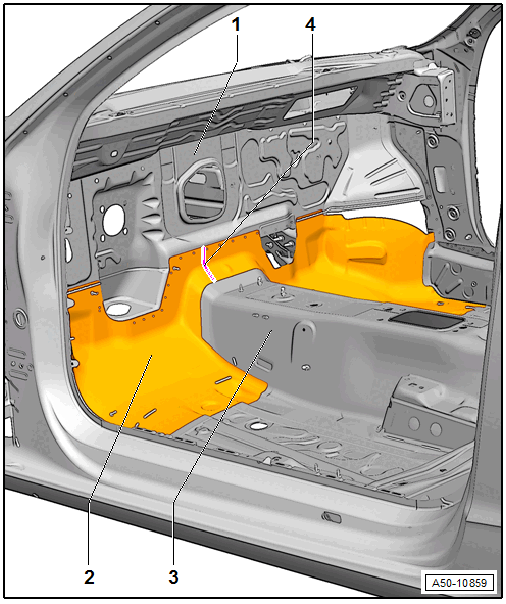

Fig 1: Outer Footwell Crossmember Separation Cut And Adjacent Component Location
GWWA50-10859Courtesy of AUDI OF AMERICA, LLC
  1. Bulkhead
  2. Outer Footwell Crossmember
  3. Tunnel
  4. Outer Crossmember Separation Cut
