Front Longitudinal Member, Replacing, Left Partial Section: Notes

WARNING: This page is about a different car, the 2025 Audi S3, 2025 Audi RS 3, and 2025 Audi A3 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

Sportback and Sedan

Overview

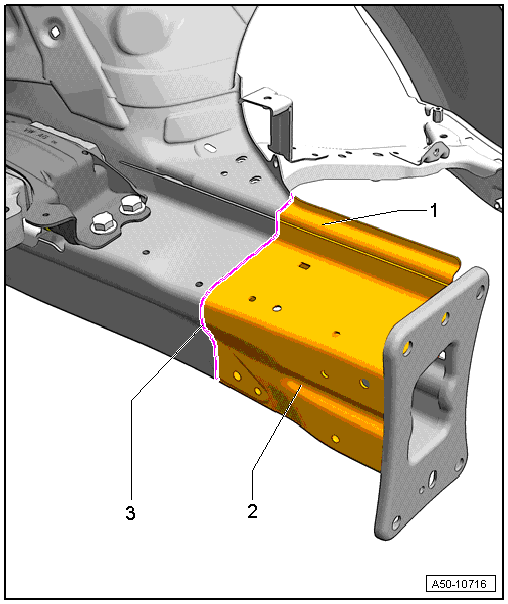

Fig 1: Front Longitudinal Member And Adjacent Component Locations (Partial Section)
GWWA50-10716Courtesy of AUDI OF AMERICA, LLC
  1. Longitudinal Member Cover Plate
  2. Front Longitudinal Member
  3. Separation Cut
