Clinch Flanges, Disconnecting

Adjusting

Courtesy of AUDI OF AMERICA, LLC

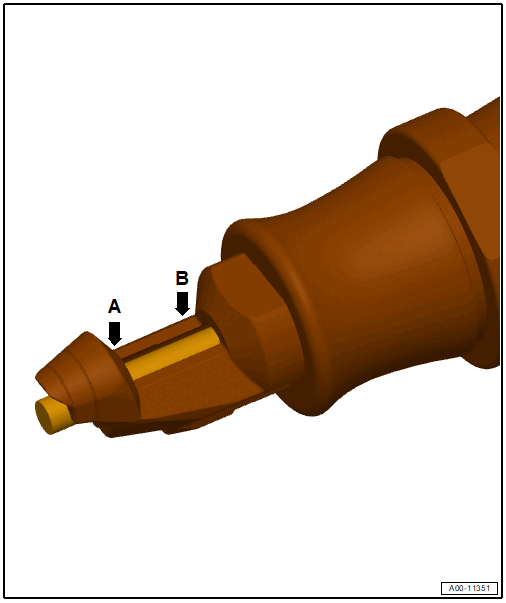

A -

The milling cutter is preset to 0.8 mm to mill steal panels.

B -

The milling cutter is preset to 1.2 mm to mill aluminum panels.

Disconnect the clinch flanges.

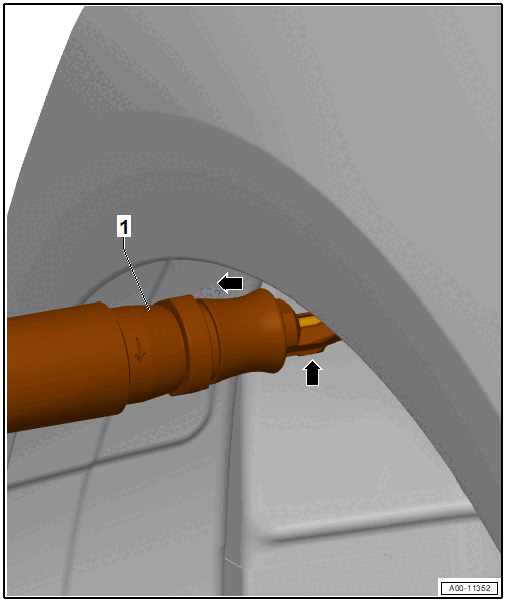

-- Position the Flat Head Milling Tool - 6mm VAS 882 005/1 and work on the panel. The surface of the machine attachment, with the desired depth, is used as a guide and depth setting.

Courtesy of AUDI OF AMERICA, LLC

Correct:

-- Screw the attachment all the way down into the machine. Tighten the lock nut -1- by hand to lock the machine attachment -2-.

Courtesy of AUDI OF AMERICA, LLC

Incorrect:

-- The machine attachment is NOT screwed down all the way. The lock nut is NOT tightened.

Courtesy of AUDI OF AMERICA, LLC

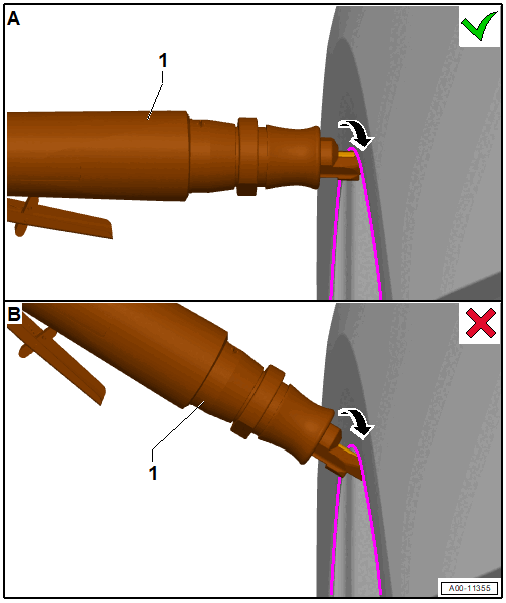

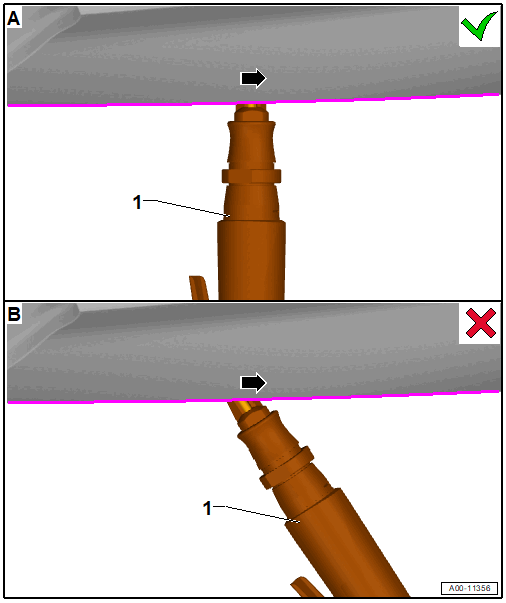

• 90° to the wheel arch -A-, correct
• Direction of milling to the right
• At an angle to the wheel arch -B-, incorrect

Courtesy of AUDI OF AMERICA, LLC

• 90° to the wheel arch -A-, correct
• Direction of milling to the right
• At an angle to the wheel arch -B-, incorrect

Courtesy of AUDI OF AMERICA, LLC
