Pneumatic Edge Milling Unit:VAS882005, APPLICATION: Basics

WARNING: This page is about a different car, the 2025 Audi S3, 2025 Audi RS 3, and 2025 Audi A3 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

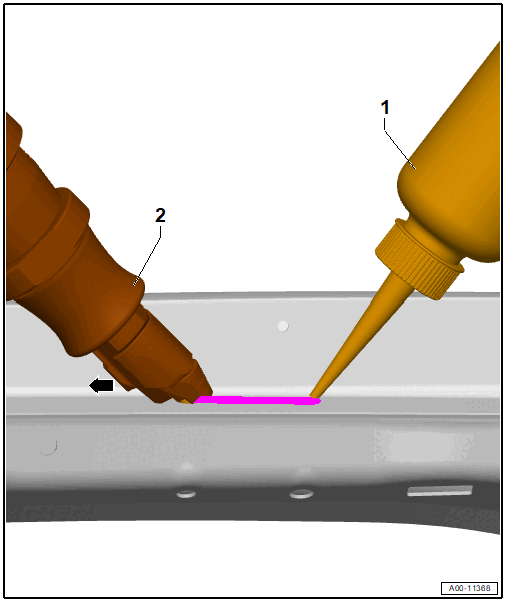

Always use a cutting oil VAS 882 001/5 -1- during milling procedures on steel panels. This ensures that there are no flying sparks,

The service life of the milling tool will be prolonged.

GWWA00-11368Courtesy of AUDI OF AMERICA, LLC
NOTE:

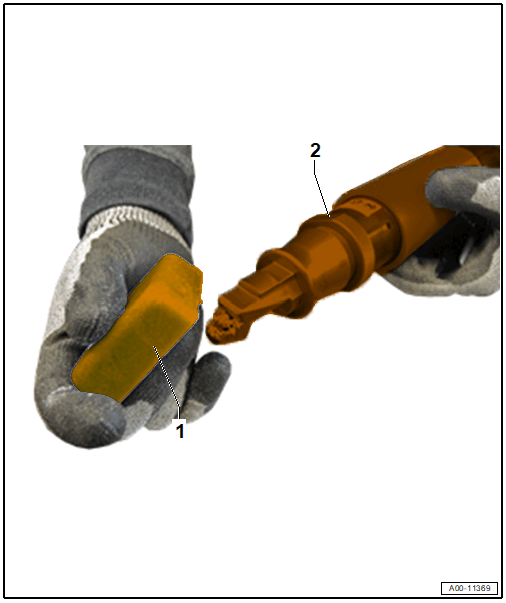

Always use the drill wax -1- during milling procedures on aluminum panels.

This prevents the milling tool from clogging. The service life of the milling tool will be prolonged.

GWWA00-11369Courtesy of AUDI OF AMERICA, LLC
NOTE:

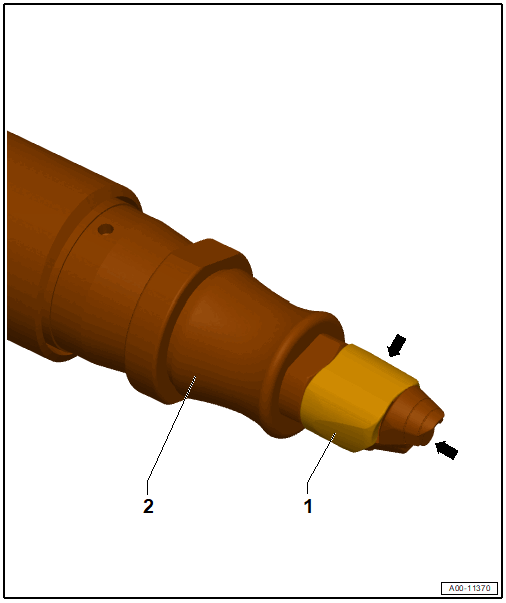

During front side procedures using the milling tool -2-, the protective cover -1- must be used.

GWWA00-11370Courtesy of AUDI OF AMERICA, LLC
