Transmission Mount, Removing And Installing: Removing

Audi A1 from MY 2018/TT from MY 2015:

-- Remove the air filter housing. Refer to AIR FILTER HOUSING, REMOVING AND INSTALLING .

Audi A1 from MY 2018:

Courtesy of AUDI OF AMERICA, LLC

-- Release the retainers -arrows- and remove the cover -2- from the engine compartment E-box.

-- Remove the nut -1- and free up the electrical wire.

-- Release the retainers -arrows- and open the cover -2- from the engine compartment E-box.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the nut -1- and free up the electrical wire.

-- Remove the bolts -arrows-, tie up the bracket to the side, for that, disconnect and free up the connector -1-.

Fig 1: Audi A1 From 2018: Air Filter Housing Bracket

Courtesy of AUDI OF AMERICA, LLC

Audi A3 from MY 2021/Q2 from MY 2016/Q3 from MY 2019:

-- Remove the battery tray. Refer to BATTERY TRAY, REMOVING AND INSTALLING .

Audi TT from MY 2015:

Fig 2: Audi TT From 2015: Air Filter Housing Bracket

Courtesy of AUDI OF AMERICA, LLC

-- Free up the wires -2- on the air filter housing bracket -1- using the Pry Lever :80-200  .

-- Remove the bolts -arrows- and the bracket.

-- Free up the wiring harness -3-.

Continuation for All Vehicles:

Courtesy of AUDI OF AMERICA, LLC

-- Remove the Engine/Motor Control Module -J623- from the bracket. Refer to Engine/Motor Control Module -J623-, REMOVING AND INSTALLING .

-- Remove the bolts -arrows- and remove the bracket -1- (example illustration above).

Audi A1 from MY 2018:

Courtesy of AUDI OF AMERICA, LLC

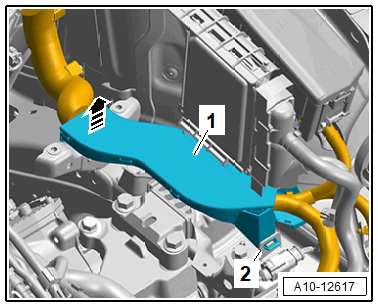

-- Unclip the wiring guide -1- upward -arrow-, disengage rearward from the guide -2- and slightly press to the side.

Audi A3 from MY 2021/Q2 from MY 2016/Q3 from MY 2019/TT from MY 2015:

Fig 3: Identifying Wiring Guide

Courtesy of AUDI OF AMERICA, LLC

-- Unclip the wiring guide -1- upward -arrows- and move it slightly to the side (example illustration above).

Continuation for All Vehicles:

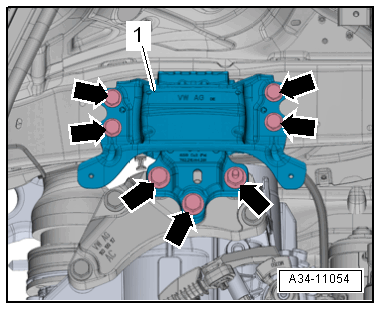

Fig 4: Identifying Bolts And Transmission Mount

Courtesy of AUDI OF AMERICA, LLC

-- Support the engine in the installation position. Refer to ENGINE, SUPPORTING IN INSTALLATION POSITION .

-- Remove the bolts -arrows- and the transmission mount -1-.
