Overview - Control Module And Hydraulic Unit
WARNING: This page is about a different car, the 2025 Audi S3, 2025 Audi RS 3, and 2025 Audi A3 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

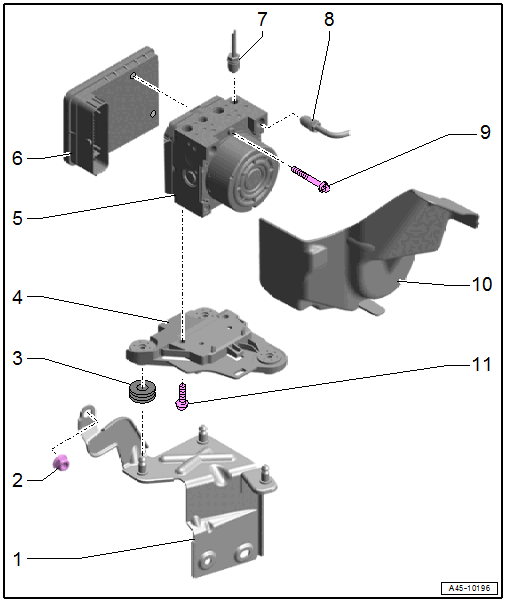

- Bracket
- There are different versions. Refer to the Electronic Parts Information (ETKA).
- Nut
- 20 Nm
- Rubber Bushing
- Mounting Bracket
- ABS Hydraulic Unit -N55-
- ABS Control Module -J104-
- Disconnect the connector with the ignition switched off
- Refer to ABS Control Module -J104- / ABS Hydraulic Unit -N55-, REMOVING AND INSTALLING
- Refer to CONTROL MODULE, SEPARATING FROM HYDRAULIC UNIT
- Refer to CONTROL MODULE, INSTALLING ON HYDRAULIC UNIT
- Brake Line
- From brake master cylinder to the hydraulic unit
- Identification: 5.25 mm diameter and union bolt with M10x1 thread
- Tightening Specifications
- With standard tool: 14 Nm
- With special tool Refer to Fig 2 12 Nm
- Brake Line
- From brake master cylinder to the hydraulic unit
- License plate: 6 mm diameter and union bolt with M12x1 thread
- Tightening Specifications
- With standard tool: 14 Nm
- With special tool Refer to Fig 2 12 Nm
- Torx Bolt
- Replace after removing
- Tighten the new Torx bolts in two steps, switching back and forth.
- Step 1: temporary tightening specification: 1 Nm to 1.5 Nm (to install the seal)
- Step 2: final tightening specification: 2.5 Nm
- Heat Shield
- Attached version
- Bolted version. Refer to Fig 3.
- Installed, depending on the version
- Bolt
- 8 Nm
Special tools and workshop equipment required
- Open Ring Spanner Insert - AF 11mm :V.A.G 1410/6
- Torque Wrench - Universal Joint :V.A.G 1410/7
- Mini Torque Wrench :VAS 6854
- Replace the self-locking nut after removing.

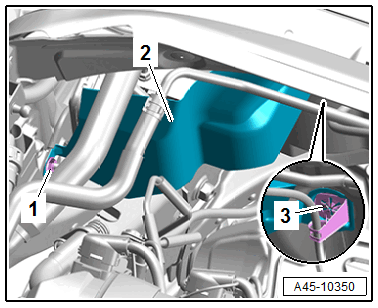

-- Tighten the nut -1- for the heat shield -2- to 8 Nm.
-- Press on the bracket for the lock washer -3- all the way.
