Component Location Overview - MECHATRONIC Sensor

WARNING: This page is about a different car, the 2025 Audi S3 and 2025 Audi A3 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

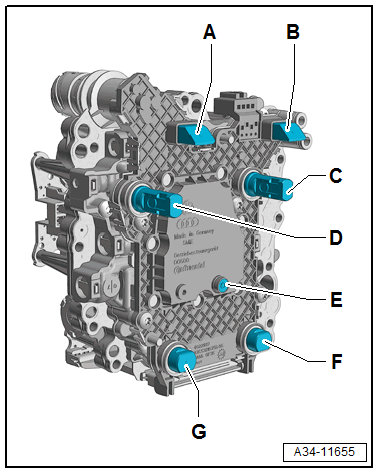

Fig 1: Mechatronic Sensor Components Location
GWWA34-11655Courtesy of AUDI OF AMERICA, LLC
  1. Gear Position Distance Sensor 4 -G490- for Gears R and 4
  2. Gear Position Distance Sensor 1 -G487- for Gears 5 and 1
  3. Transmission Input Speed Sensor 2 -G612-
  4. Transmission Input Speed Sensor 1 -G632-
  5. Transmission Fluid Temperature Sensor -G93-
  6. Gear Position Distance Sensor 2 -G488- for Gears 2 and 6
  7. Gear Position Distance Sensor 3 -G489- for Gears 3 and 7
