Shift Mechanism, Removing And Installing: Removing

WARNING: This page is about a different car, the 2025 Audi S3 and 2025 Audi A3 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

-- Engage the parking brake.

-- Remove the center console insert. Refer to CENTER CONSOLE INSERT, REMOVING AND INSTALLING .

-- Remove the air filter housing. For gasoline, refer to AIR FILTER HOUSING, REMOVING AND INSTALLING . For diesel, refer to the appropriate service information .

-- Remove the battery and the battery tray. Refer to BATTERY TRAY, REMOVING AND INSTALLING .

-- Remove the ball socket -1- on the selector lever cable from the selector shaft lever using the Pry Lever :80-200 .

Courtesy of AUDI OF AMERICA, LLC

CAUTION:

Risk of damaging the operating cable by deforming it.

- Never bend the operating cable too sharply or kink it.

-- Remove the bolts -arrows-.

-- Remove the tunnel heat shield. Refer to FRONT HEAT SHIELD, REMOVING AND INSTALLING .

AWD Vehicles

-- Remove the driveshaft. Refer to the appropriate service information .

Continuation for all vehicles

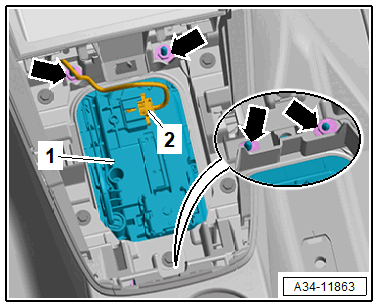

-- Disconnect the connector -2-.

Courtesy of AUDI OF AMERICA, LLC

A second technician is required under the vehicle to remove the shift mechanism -1-.

-- Remove the nuts -arrows- in the vehicle interior.

-- Remove the selector mechanism downward.
