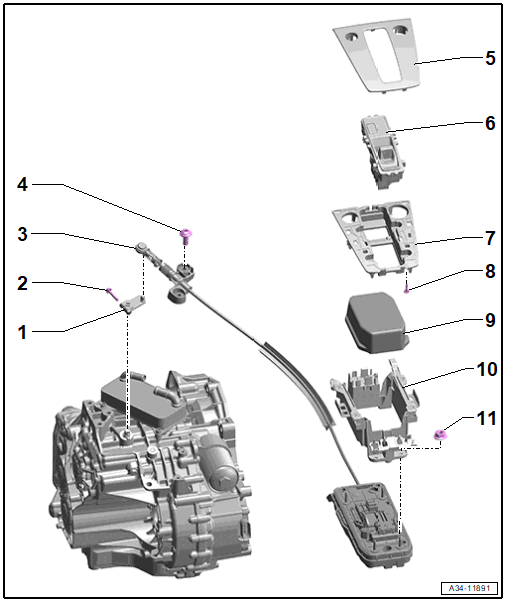

Overview - Shift Mechanism
WARNING: This page is about a different car, the 2025 Audi S3 and 2025 Audi A3 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
- Shift Lever
- Bolt
- 10 Nm + 90°
- Always replace after removing
- Shift Mechanism
- With integrated components
- Parking Lock Actuator -V682-
- Parking Lock Solenoid -N486-
- Selector Lever Cable
- Replace the cable retainer after removal
- Checking. Refer to SHIFT MECHANISM, CHECKING .
- Removing and Installing. Refer to SHIFT MECHANISM, REMOVING AND INSTALLING .
- With integrated components
- Bolt
- Quantity: 2
- 20 Nm
- Cover
- For center console insert
- Controls for Shift Mechanism
- With integrated components
- Selector Lever -E313-
- Selector Lever Sensor System Control Module -J587-
- Parking Lock Button -E816-
- Selector Lever Transmission Range Display -Y5-
- The components cannot be replaced separately
- Removing and Installing. Refer to SELECTOR MECHANISM CONTROL, REMOVING AND INSTALLING .
- With integrated components
- Center Console Insert
- Removing and Installing. Refer to CENTER CONSOLE INSERT, REMOVING AND INSTALLING .
- Bolt
- Quantity: 4
- Tightening Specification. Refer to OVERVIEW - CENTER CONSOLE .
- Noise Insulation
- Mount
- Nut
- Quantity: 4
- 8 Nm
