Telephone BASEPLATE, Removing And Installing: Removing

WARNING: This page is about a different car, the 2025 Audi S3, 2025 Audi RS 3, and 2025 Audi A3 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

-- Turn off the ignition and all electrical equipment. Set the ignition key outside of the vehicle.

-- Turn the front section at the Removal Tool for Coupling - Aerial :T40388 by 90°.

The rubber lip on the surface on which the Removal Tool for Coupling - Aerial :T40388 was inserted must be slightly pressed out -arrow-.

Courtesy of AUDI OF AMERICA, LLC

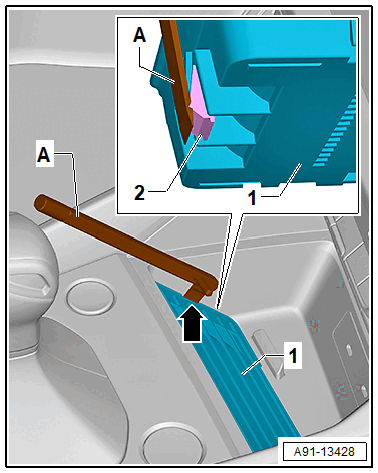

-- Using the Removal Tool for Coupling - Aerial :T40388 -A-, carefully push the rubber lip on the Mobile Device Charger 1 -J1146- to the side -arrow- and guide in the Removal Tool for Coupling - Aerial :T40388 vertically from above as shown.

-- The catch -2- is released and engages in the groove on the Removal Tool for Coupling - Aerial :T40388 -A-.

-- Pull the Removal Tool for Coupling - Aerial :T40388 -A- back out vertically upward and remove the Mobile Device Charger 1 -J1146- -1- from the storage compartment.

-- Pivot the Mobile Device Charger 1 -J1146- -1- out of the storage compartment.

-- Release and disconnect the connectors from the Mobile Device Charger 1 -J1146-.
