Subwoofer -R211-, REMOVING AND INSTALLING: Removing
WARNING: This page is about a different car, the 2025 Audi S3, 2025 Audi RS 3, and 2025 Audi A3 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
-- Turn off the ignition and all electrical equipment. Set the ignition key outside of the vehicle.
-- Detach the left luggage compartment side trim panel in the rear area until the Subwoofer -R211- is accessible. Refer to LUGGAGE COMPARTMENT SIDE TRIM PANEL, REMOVING AND INSTALLING, SEDAN , LUGGAGE COMPARTMENT SIDE TRIM PANEL, REMOVING AND INSTALLING, SPORTBACK .

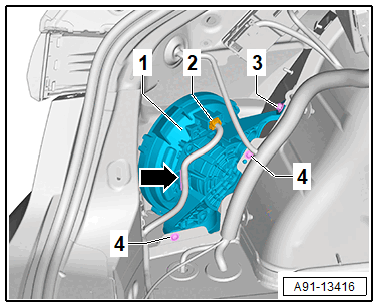

-- Release and disconnect the connector -2- from the Subwoofer -R211- -1-.
-- Remove the wiring harness from the Subwoofer -R211- -1- -arrow-.
-- Remove the nut -3-.
-- Remove the bolts -4-.
-- Pull the Subwoofer -R211- -1- upward out of the body seal and remove.
