Left And Right Front Treble Speaker -R20- / -R22-, Removing And Installing: Removing
WARNING: This page is about a different car, the 2025 Audi S3, 2025 Audi RS 3, and 2025 Audi A3 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
-- Turn off the ignition and all electrical equipment. Set the ignition key outside of the vehicle.
-- Remove the A-pillar upper trim panel. Refer to A-PILLAR UPPER TRIM PANEL, REMOVING AND INSTALLING .

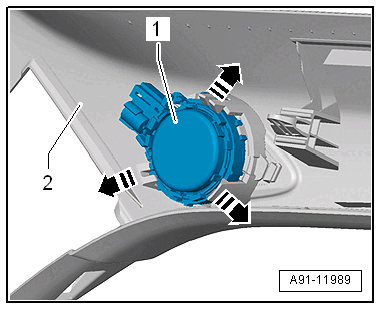

-- Release and disconnect the connector from the Left Front Treble Speaker -R20- -1-.
-- Press the tabs in the -direction of the arrow- until the Left Front Treble Speaker -R20- -1- can be removed from the A-pillar trim panel -2-.
