Left And Right Front Bass Speaker -R21- / -R23-, Removing And Installing: Removing
WARNING: This page is about a different car, the 2025 Audi S3, 2025 Audi RS 3, and 2025 Audi A3 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
-- Turn off the ignition and all electrical equipment. Set the ignition key outside of the vehicle.
-- Remove the front door trim panel. Refer to FRONT DOOR TRIM PANEL, REMOVING AND INSTALLING .

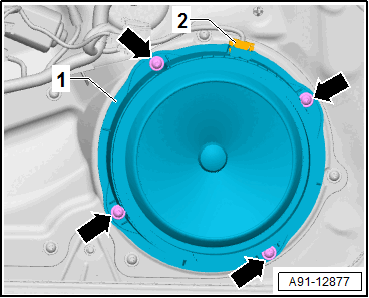

-- Release and disconnect the connector -2- from the Left Front Bass Speaker -R21- -1-.
-- Remove the bolts -arrows- (quantity 4) at the Left Front Bass Speaker - R21- -1-.
-- Remove the Left Front Bass Speaker -R21- -1- from the door.
