Front Midrange Speaker, Removing And Installing: Removing
WARNING: This page is about a different car, the 2025 Audi S3, 2025 Audi RS 3, and 2025 Audi A3 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
-- Turn off the ignition and all electrical equipment. Set the ignition key outside of the vehicle.
-- Remove the speaker mount. Refer to OVERVIEW - INSTRUMENT PANEL .

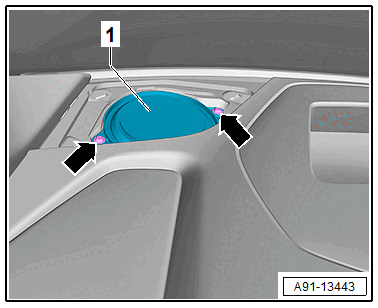

-- Remove the bolts -arrows-.
-- Remove the Left Front Midrange Speaker -R103- -1- upward until the connector is accessible.
-- Release and disconnect the connector from the Left Front Midrange Speaker -R103- -1-.
