Overview - Infotainment System

WARNING: This page is about a different car, the 2025 Audi S3, 2025 Audi RS 3, and 2025 Audi A3 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

The Infotainment system contains the following functions / components:

Optional

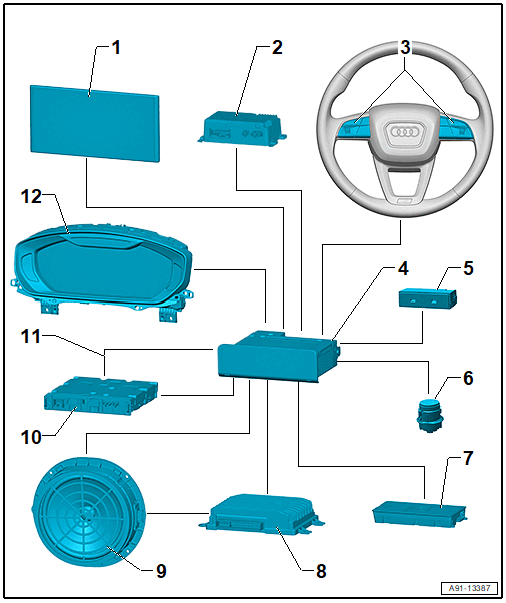

GWWA91-13387Courtesy of AUDI OF AMERICA, LLC
  1. Front Information Display Control Head -J685-, display in center of the instrument panel
  2. The Control Module for Emergency Call Module and Communication Unit - J949- is located behind the display of the center instrument panel.
  3. Right Multifunction Buttons on Steering Wheel -E441- /Left Multifunction Buttons on Steering Wheel -E440-
  4. Information Electronics Control Module 1 -J794- behind the glove compartment
  5. USB Distributor -R293- in the front center console storage compartment
  6. Driver Volume Control -E67- in the Center Console
  7. Mobile Device Charger 1 -J1146- in the front center console storage compartment
  8. Digital Sound System Control Module -J525- in luggage compartment on right rear side
  9. Sound Systems
  10. TV-Tuner -R78- located on the right behind instrument cluster
  11. MOST Bus
  12. Instrument Cluster with Instrument Cluster Control Module -J285-

The data exchange of the systems in the MMI is done via the MOST bus, the CAN bus and the Ethernet.

Fault Finding is performed using the "Guided Fault Finding"  on the Vehicle Diagnostic Tester .

Notes on MOST bus

The optical data bus "MOST bus" is used in addition to the CAN bus.

A fiber-optic cable is used. Fiber optic cables are routed inside corrugated tubes for protection.

Replace the complete fiber-optic cable if possible.

The front surface of the connectors must not be contaminated.

If disconnecting the connectors: Attach the Fiber-Optic Repair Set - Connector Protective Caps :VAS 6223/9  .

Fig 1: Fiber-Optic Conductor Repair Set (VAS 6223A)
GWWW00-11495Courtesy of AUDI OF AMERICA, LLC

When routing fiber-optic cables, make sure not to go below the minimum bending radius of 25 mm. Do not crush or kink fiber optic cables.

Fiber-optic cable repair. Refer to WIRING HARNESSES AND CONNECTORS, REPAIRING .
