Infotainment System Display, Removing And Installing: Removing
WARNING: This page is about a different car, the 2025 Audi S3, 2025 Audi RS 3, and 2025 Audi A3 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
-- Turn off the ignition and all electrical equipment. Set the ignition key outside of the vehicle.
-- Remove the center instrument panel decorative trim and upper front passenger side instrument panel decorative trim. Refer to appropriate service information. .

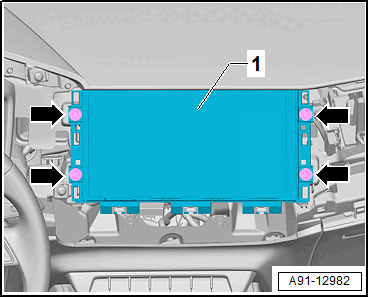

-- Remove the screws -arrows- and remove the Front Information Display Control Head -J685- -1- from the instrument panel.
-- Release and disconnect the connector.
