Information Electronics Control Module 1 -J794-, REMOVING AND INSTALLING: Installing
WARNING: This page is about a different car, the 2025 Audi S3, 2025 Audi RS 3, and 2025 Audi A3 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
Install in the reverse order of removal, while noting the following:

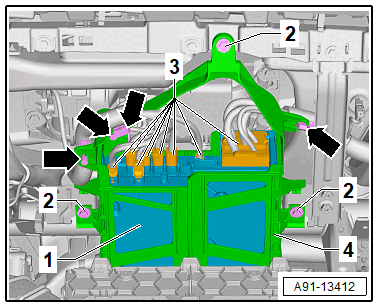

-- First insert the Information Electronics Control Module 1 -J794- into the bracket until it engages.
-- Secure the bracket -4- with bolts -2-.
-- Connect all connectors -3-.
-- Install the wiring harnesses to the bracket -4- -arrows-.
