Driver Volume Control -E67-, REMOVING AND INSTALLING: Notes
WARNING: This page is about a different car, the 2025 Audi S3, 2025 Audi RS 3, and 2025 Audi A3 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
Special tools and workshop equipment required
- Vehicle Diagnostic Tester

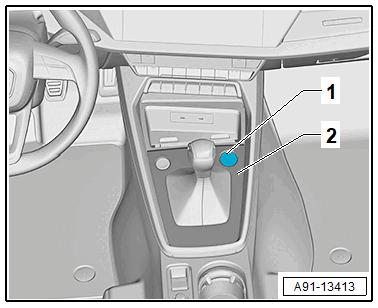

The Driver Volume Control -E67- -1- is installed in the center console insert -2-.
If the Driver Volume Control -E67- is being replaced, the following procedure applies:
-- Connecting and switching on the Vehicle Diagnostic Tester.
-- Switch the ignition on.
-- Select and start the Diagnostic operating mode.
-- Select the Test plan tab.
-- Select the Select individual test button and select the following tree structure consecutively:
- Diagnostic-capable systems
- 005F - Information Electronics Control Module 1 - J794 (MIB 3)
- 005F - Information Electronics Control Module 1, functions
- 0693 - Driver Volume Control -E67-, replacing
-- Start the selected program and follow the instructions on the Vehicle Diagnostic Tester display.
