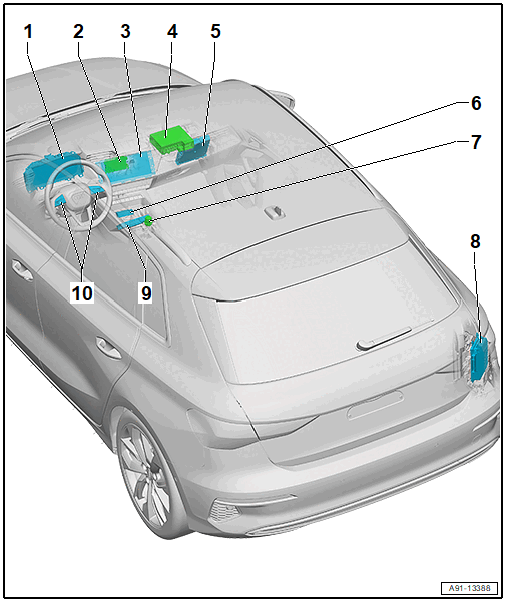

Component Location Overview - Infotainment System
WARNING: This page is about a different car, the 2025 Audi S3, 2025 Audi RS 3, and 2025 Audi A3 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
- Instrument Cluster with Instrument Cluster Control Module -J285-
- Removing and installing. Refer to INSTRUMENT CLUSTER -KX2-, REMOVING AND INSTALLING .
- Control Module for Emergency Call Module and Communication Unit -J949-
- Behind the display in the center instrument panel
- Removing and Installing. Refer to Control Module for Emergency Call Module and Communication Unit -J949-, REMOVING AND INSTALLING, THROUGH PRODUCT IMPROVEMENT .
- Front Information Display Control Head -J685-
- Removing and Installing. Refer to INFOTAINMENT SYSTEM DISPLAY, REMOVING AND INSTALLING .
- Screw tightening specification: 3 Nm
- Information Electronics Control Module 1 -J794-
- Behind the glove compartment
- Removing and Installing. Refer to Information Electronics Control Module 1 -J794-, REMOVING AND INSTALLING .
- Bracket screw tightening specification: 3 Nm
- TV Tuner -R78-
- Behind instrument cluster at right
- Removing and Installing. Refer to TV TUNER, REMOVING AND INSTALLING .
- USB Distributor -R293-
- In the front center console storage compartment
- Removing and Installing. Refer to USB Distributor -R293-, REMOVING AND INSTALLING .
- Driver Volume Control -E67-
- In the center console insert
- Removing and Installing. Refer to Driver Volume Control -E67-, REMOVING AND INSTALLING .
- Digital Sound System Control Module -J525-
- Removing and Installing. Refer to CONTROL MODULE/DIGITAL SOUND SYSTEM AMPLIFIER, REMOVING AND INSTALLING .
- Mobile Device Charger 1 -J1146-
- In the front center console storage compartment
- Removing and Installing. Refer to TELEPHONE BASEPLATE, REMOVING AND INSTALLING .
- Multifunction Buttons in Steering Wheel
- Left Multifunction Buttons on Steering Wheel -E440-
- Right Multifunction Buttons on Steering Wheel -E441-
- Removing and Installing. Refer to RIGHT AND LEFT MULTIFUNCTION BUTTONS ON STEERING WHEEL -E441- / -E440-, REMOVING AND INSTALLING .
