USB Distributor -R293-, REMOVING AND INSTALLING: Removing
WARNING: This page is about a different car, the 2025 Audi S3, 2025 Audi RS 3, and 2025 Audi A3 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
-- Turn off the ignition and all electrical equipment. Set the ignition key outside of the vehicle.
-- Remove the front center console storage compartment. Refer to FRONT CENTER CONSOLE STORAGE COMPARTMENT, REMOVING AND INSTALLING .
Vehicles through product improvement

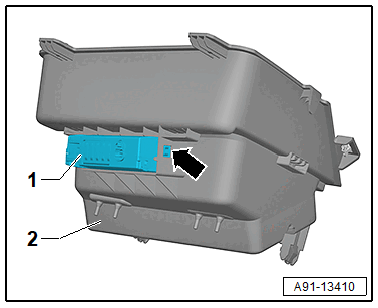

-- Release the -arrow- at the USB Distributor -R293- -1- on both sides.
-- At the same time remove the USB Distributor -R293- -1- from the front center console storage compartment -2-.
Vehicles from product improvement
-- Release six retaining tabs -arrows- on the USB Distributor - R293- -2- at the top and bottom.
-- At the same time, remove the USB Distributor - R293- -2- from the front storage compartment -1- to the rear.
