Window Guide, Removing And Installing: Installing

WARNING: This page is about a different car, the 2025 Audi S3, 2025 Audi RS 3, and 2025 Audi A3 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

Install in the reverse order of removal, while noting the following:

-- Install the window guide -A- on the door flange in the sequence -1 through 5-.

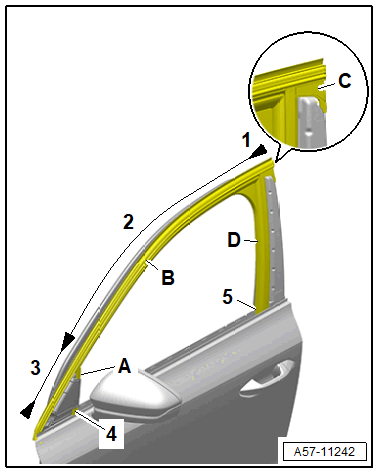

Fig 1: Window Guide Installation Sequence

Courtesy of AUDI OF AMERICA, LLC

Step
1.	-- Position the upper edge of the window guide on the B-pillar door flange and push it forward in the direction of travel. The corner -C- of the window guide must be flush on the B-pillar door flange.
2.	-- Install the window guide -B- on the door flange.
3.	-- Align the window guide on the A-pillar guide rail.
4.	-- Insert the window guide -A- in the guide rail. Fold the window guide sealing lip over the inside of the door flange.
5.	-- Mount the B-pillar trim (refer to B-PILLAR DOOR TRIM, REMOVING AND INSTALLING, FRONT ) and insert the window guide -D- in the guide rail.
