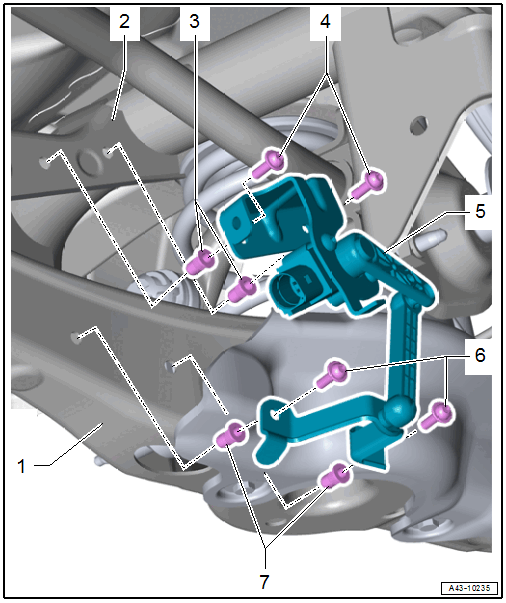

Overview - Rear Level Control System Sensor, Multi-Link Suspension
WARNING: This page is about a different car, the 2025 Audi S3, 2025 Audi RS 3, and 2025 Audi A3 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
- Lower Transverse Link
- Subframe
- Pop Rivet Nuts
- Bolts
- 5 Nm
- Left Rear Level Control System Sensor -G76-
- The lever must face toward outside of vehicle
- Removing and Installing. Refer to LEFT REAR LEVEL CONTROL SYSTEM SENSOR -G76-, REMOVING AND INSTALLING .
- Vehicles without electronic damping: perform the basic setting of the Matrix LED headlamps after installing. Use the Vehicle diagnostic tester .
- On vehicles with electronic damping perform the basic setting of the electronic damping after installing. Refer to ELECTRONIC DAMPING BASIC SETTING .
- Bolts
- 5 Nm
- Pop Rivet Nuts
