Overview - Front Level Control System Sensor

WARNING: This page is about a different car, the 2025 Audi S3, 2025 Audi RS 3, and 2025 Audi A3 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

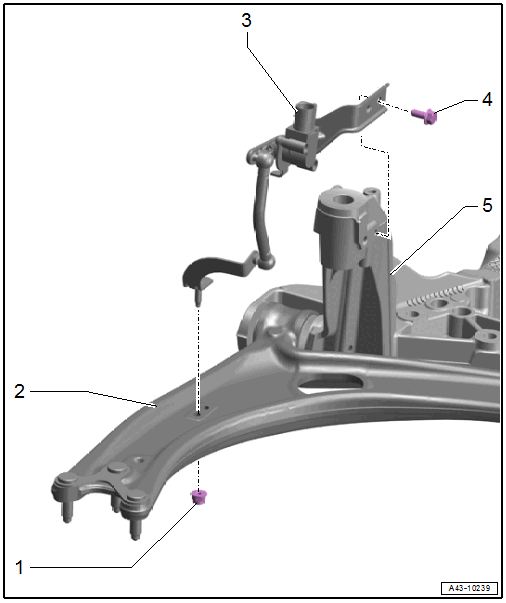

Fig 1: Exploded View Of Front Level Control System Sensor

Courtesy of AUDI OF AMERICA, LLC

Nut
- Self-locking
- Replace after removing
- 8 Nm
Transverse Link
Front Level Control System Sensor
- Left Front Level Control System Sensor -G78-
- Right Front Level Control System Sensor -G289-
- Complete with coupling rod and upper and lower retaining plate
- The lever must face toward outside of vehicle
- Removing and Installing. Refer to LEFT AND RIGHT FRONT LEVEL CONTROL SYSTEM SENSOR -G78- / -G289-, REMOVING AND INSTALLING .
- Vehicles without electronic damping: perform the basic setting of the Matrix LED headlamps after installing. Use the Vehicle diagnostic tester .
- On vehicles with electronic damping perform the basic setting of the electronic damping after installing. Refer to ELECTRONIC DAMPING BASIC SETTING .
Bolt
- 8 Nm
Subframe
