Overview - Windshield Wiper System, A3/S3

WARNING: This page is about a different car, the 2025 Audi S3, 2025 Audi RS 3, and 2025 Audi A3 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

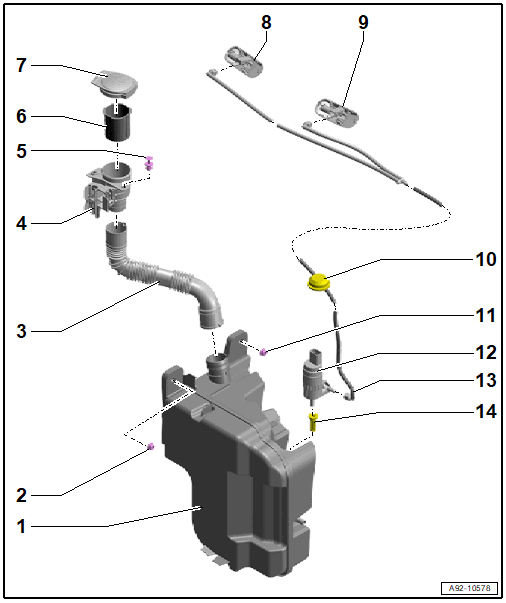

Fig 1: Exploded View Of Windshield Washer System, A3/S3

Courtesy of AUDI OF AMERICA, LLC

Washer Fluid Reservoir
- with Windshield Washer Fluid Level Sensor -G33-. Cannot be replaced separately if faulty.
- Removing and Installing. Refer to WASHER FLUID RESERVOIR, REMOVING AND INSTALLING, A3/S3 .
Nut
- 8 Nm
Filler Tube
Unit with OVERVIEW - WINDSHIELD WIPER SYSTEM, A3/S3
Filler Neck
- Unit with OVERVIEW - WINDSHIELD WIPER SYSTEM, A3/S3
Expanding Clip
Screen
Cap
- For the filler neck
Right Washer Nozzle
- Versions with Right Washer Nozzle Heater -Z21-
- Removing and Installing. Refer to WASHER NOZZLES, REMOVING AND INSTALLING .
- Adjusting: Refer to WINDSHIELD WASHER SYSTEM, CHECK SPRAY PATTERN AND ADJUSTING IF NECESSARY .
Left Washer Nozzle
- Versions with Left Washer Nozzle Heater -Z20-
- Removing and Installing. Refer to WASHER NOZZLES, REMOVING AND INSTALLING .
- Adjusting: Refer to WINDSHIELD WASHER SYSTEM, CHECK SPRAY PATTERN AND ADJUSTING IF NECESSARY .
Grommet
- For the windshield washer fluid hose inside the hood
Nut
- Quantity: 2
- 8 Nm
Windshield and Rear Window Washer Pump -V59-
- Removing and Installing. Refer to WINDSHIELD WASHER PUMP, REMOVING AND INSTALLING .
Washer Fluid Hose
- For the windshield washer system
Grommet
- Replace if damaged
