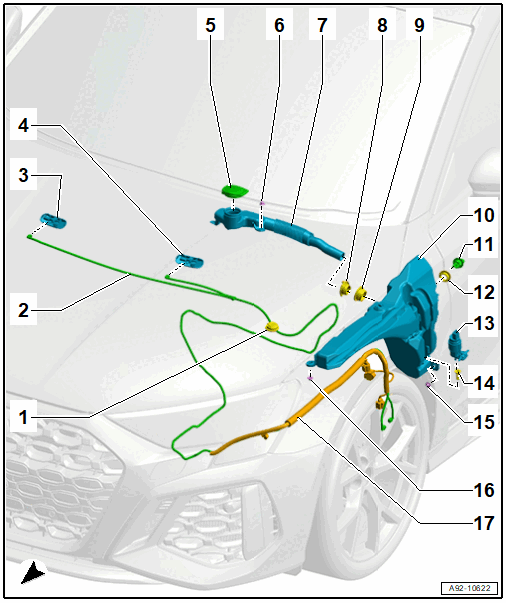

Overview - Windshield Washer System, RS3
WARNING: This page is about a different car, the 2025 Audi S3, 2025 Audi RS 3, and 2025 Audi A3 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
- Grommet
- For the windshield washer fluid hose inside the hood
- Washer Fluid Hose
- To the washer nozzles
- Right Washer Nozzle
- Versions with Right Washer Nozzle Heater -Z21-
- Removing and Installing. Refer to WASHER NOZZLES, REMOVING AND INSTALLING .
- Adjusting: Refer to WINDSHIELD WASHER SYSTEM, CHECK SPRAY PATTERN AND ADJUSTING IF NECESSARY .
- Left Washer Nozzle
- Versions with Left Washer Nozzle Heater -Z20-
- Removing and Installing. Refer to WASHER NOZZLES, REMOVING AND INSTALLING .
- Adjusting: Refer to WINDSHIELD WASHER SYSTEM, CHECK SPRAY PATTERN AND ADJUSTING IF NECESSARY .
- Cap
- For the filler neck
- Nut
- Self-locking
- Replace after removing
- 8 Nm
- Filler Neck with Filler Tube
- For the washer fluid reservoir
- Removing and Installing. Refer to WASHER FLUID RESERVOIR FILLER NECK, REMOVING AND INSTALLING, RS3 .
- Grommet
- Replace if damaged
- Grommet
- Replace if damaged
- Washer Fluid Reservoir
- Removing and Installing. Refer to WASHER FLUID RESERVOIR, REMOVING AND INSTALLING, RS3 .
- Windshield Washer Fluid Level Sensor -G33-
- Removing and Installing. Refer to WINDSHIELD WASHER FLUID LEVEL SENSOR, REMOVING AND INSTALLING .
- Grommet
- Replace if damaged
- Windshield and Rear Window Washer Pump -V59-
- Removing and Installing. Refer to WINDSHIELD WASHER PUMP, REMOVING AND INSTALLING, RS3 .
- Grommet
- Replace if damaged
- Nut
- Self-locking
- Replace after removing
- 8 Nm
- Nut
- Self-locking
- Replace after removing
- 8 Nm
- Wire Package
- With wiring harness and washer fluid hoses for front and rear window washer system
