Wiper Arm, Adjusting
WARNING: This page is about a different car, the 2025 Audi S3, 2025 Audi RS 3, and 2025 Audi A3 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
Procedure
-- Remove the wiper arm. Refer to WINDSHIELD WIPER ARM, REMOVING AND INSTALLING .
-- Switch the ignition on.
-- Activate "rear wiping" and let the wiper arm run to end position.
-- Switch off the ignition.

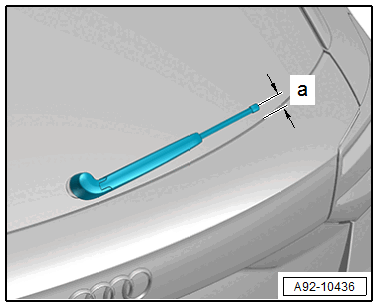

-- Position the wiper arm with the wiper blade mounted on the windshield wiper axle and align the wiper blade to the rear window as follows:
- Dimension -a- = 20 + 5 mm
TIP:
The dimension is the distance between the wiper blade tip and the lower edge of the window.
-- Tighten the wiper arm nut.
-- Switch the ignition on.
-- Activate "rear wiping" and let the wiper arm run to end position.
-- Check the wiper arm adjustment again and correct if necessary.
Tightening Specifications
- Refer to OVERVIEW - REAR WINDOW WIPER SYSTEM
