Overview - Windshield Projection (Head-Up Display)

WARNING: This page is about a different car, the 2025 Audi S3, 2025 Audi RS 3, and 2025 Audi A3 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

The overview shows a LHD vehicle as an example. For RHD vehicles the layout is a mirror image.

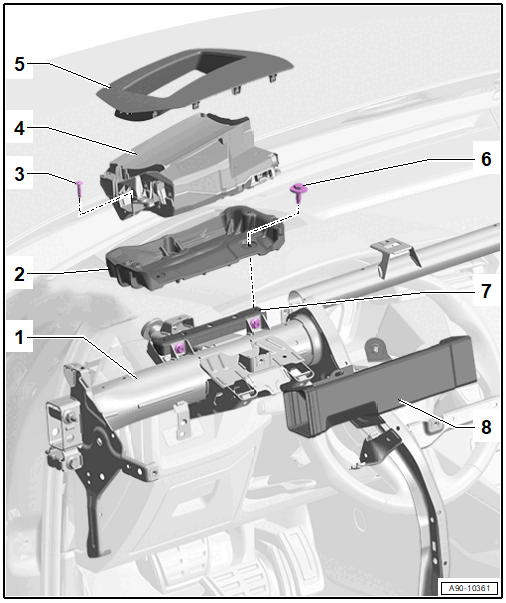

Fig 1: Exploded View Of Windshield Projection (Head-Up Display)

Courtesy of AUDI OF AMERICA, LLC

Crossmember
- For the instrument panel
Bracket
Bolt
- Quantity: 3
- 4.5 Nm
Windshield Projection Head Up Display Control Module -J898-
- Removing and Installing. Refer to WINDSHIELD PROJECTION HEAD UP DISPLAY CONTROL MODULE, REMOVING AND INSTALLING .
Upper Cover
- Removing and Installing. Refer to WINDSHIELD PROJECTION HEAD UP DISPLAY CONTROL MODULE, REMOVING AND INSTALLING .
Bolt
- Quantity: 3
- 3 Nm
Gauge Plate
- must not be loosened
- If the gauge plate is loosened, then the instrument panel crossmember must be replaced
Instrument Panel Air Duct
- Overview. Refer to OVERVIEW - AIR ROUTING AND AIR DISTRIBUTION IN VEHICLE INTERIOR .
