Overview - Instrument Cluster

WARNING: This page is about a different car, the 2025 Audi S3, 2025 Audi RS 3, and 2025 Audi A3 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

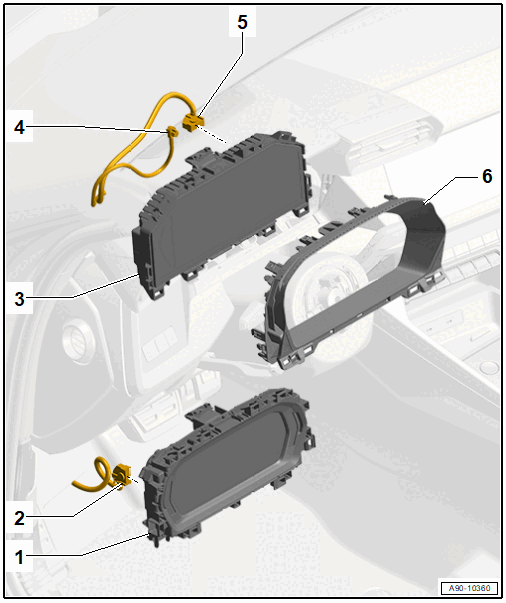

Fig 1: Exploded View Of Instrument Cluster

Courtesy of AUDI OF AMERICA, LLC

Instrument Cluster -KX2- (7J2, 9S1)
- With Instrument Cluster Control Module -J285-
- Do not disassemble
- If faulty replace the instrument cluster
- Removing and Installing. Refer to Instrument Cluster -KX2-, REMOVING AND INSTALLING .
Connector
- For the instrument cluster
Instrument Cluster -KX2- (9S9)
- With Instrument Cluster Control Module -J285-
- Do not disassemble
- If faulty replace the instrument cluster
- Removing and Installing. Refer to Instrument Cluster -KX2-, REMOVING AND INSTALLING .
Antenna Wire
Connector
- For the instrument cluster
Instrument Cluster Trim
- Removing and Installing. Refer to INSTRUMENT CLUSTER TRIM, REMOVING AND INSTALLING .
