Parking Aid Control Module -J446- REMOVING AND INSTALLING, LHD: Removing
WARNING: This page is about a different car, the 2025 Audi S3, 2025 Audi RS 3, and 2025 Audi A3 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
- Component location. Refer to COMPONENT LOCATION OVERVIEW - SENSORS AND CONTROL MODULES IN CENTER SECTION OF VEHICLE .
-- Remove the driver side instrument panel cover. Refer to DRIVER SIDE INSTRUMENT PANEL COVER, REMOVING AND INSTALLING .

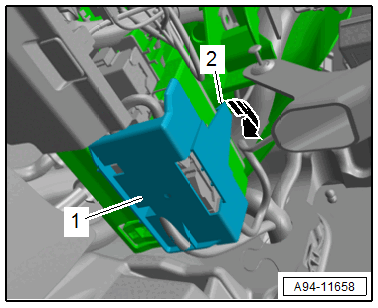

-- If equipped, release the retainer -2- -arrow- and remove the cover -1- downward.

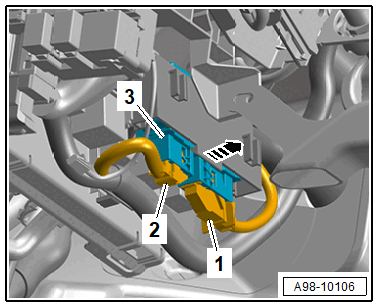

-- Disconnect the connectors -1 and 2-.
-- Release the tab -arrow- and remove the control module -3- downward from the bracket.
