Left/Right Front Parallel Parking Assistance Sensor -G568- / -G569-, Removing And Installing: Removing
WARNING: This page is about a different car, the 2025 Audi S3, 2025 Audi RS 3, and 2025 Audi A3 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
- Component location. Refer to COMPONENT LOCATION OVERVIEW - SENSORS AND CONTROL MODULES IN FRONT SECTION OF VEHICLE .
-- Loosen the front wheel housing liners in the front area. Refer to OVERVIEW - FRONT WHEEL HOUSING LINER .

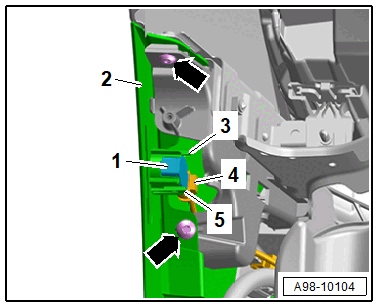

-- Remove the bolts -arrows-.
-- Release the retainers -3 and 5-.
-- Slightly pull the bumper cover side piece -2- outward and remove the sensor -1- from the mount.
-- Disconnect the connector -4- by sliding the retainer toward the rear and pressing the release downward.
