Component Location Overview - Outer Control Modules

WARNING: This page is about a different car, the 2025 Audi S3, 2025 Audi RS 3, and 2025 Audi A3 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

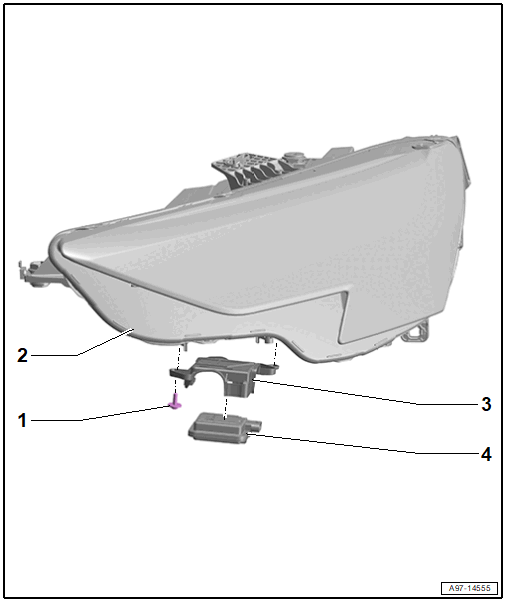

Fig 1: Exploded View Of Outer Control Modules
GWWA97-14555Courtesy of AUDI OF AMERICA, LLC
  1. Bolt
    • Quantity: 2
    • 3 Nm
  2. Left Headlamp
  3. Bracket
    • For Garage Door Opener Control Module -J530-
  4. Garage Door Opener Control Module -J530-
