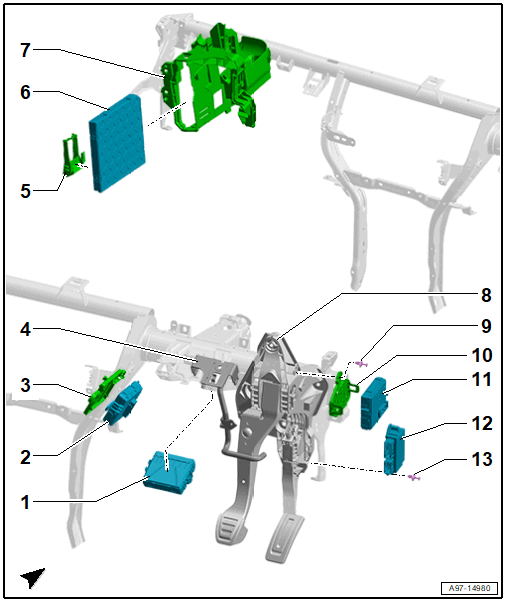

Component Location Overview - Inner Control Modules, RHD
WARNING: This page is about a different car, the 2025 Audi S3, 2025 Audi RS 3, and 2025 Audi A3 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
- Data Bus on Board Diagnostic Interface -J533-
- Overview. Refer to OVERVIEW - DATA BUS ON BOARD DIAGNOSTIC INTERFACE .
- Access/Start Authorization Control Module -J518-
- Removing and Installing. Refer to the appropriate service information .
- Bracket
- For access/start authorization control module
- Crash Bolster
- Guide
- For the center connector
- Vehicle Electrical System Control Module -J519-
- Removing and Installing. Refer to the appropriate service information .
- Bracket
- For vehicle electrical system control module
- Pedal Assembly/Mounting Bracket
- Expanding Rivet
- Quantity: 2
- Bracket
- For the cornering lamp and headlamp range control module
- Cornering Lamp and Headlamp Range Control Module -J745-
- Removing and Installing. Refer to HEADLAMP RANGE CONTROL MODULE, REMOVING AND INSTALLING .
- Parking Aid Control Module -J446-
- Removing and installing. Refer to Parking Aid Control Module -J446-, REMOVING AND INSTALLING .
- Expanding Rivet
- Quantity: 2
