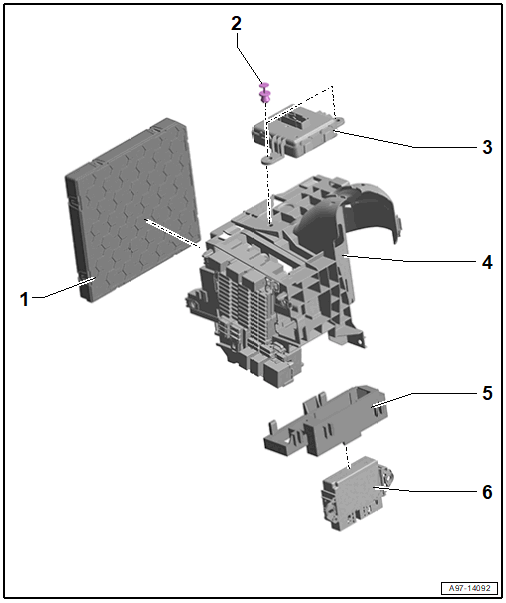

Component Location Overview - Inner Control Modules, LHD
WARNING: This page is about a different car, the 2025 Audi S3, 2025 Audi RS 3, and 2025 Audi A3 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
- Vehicle Electrical System Control Module -J519-
- Removing and Installing. Refer to Vehicle Electrical System Control Module -J519-, REMOVING AND INSTALLING .
- Expanding Rivet
- Access/Start Authorization Control Module -J518-
- Component Location Overview. Refer to COMPONENT LOCATION OVERVIEW - ACCESS/START AUTHORIZATION SYSTEM .
- Bracket
- For vehicle electrical system control module
- Component Location Overview. Refer to COMPONENT LOCATION OVERVIEW - RELAY PANEL, INSTRUMENT PANEL/A-PILLAR FUSE PANEL, LHD .
- Bracket
- For the control module
- Overview. Refer to COMPONENT LOCATION OVERVIEW - RELAY PANELS, FUSE PANELS AND E-BOX .
- Control Module
- Equipment version with parking aid: Parking Aid Control Module -J446-
- Equipment version with parallel parking assist: Parallel Parking Assistance Control Module -J791-
- Removing and installing. Refer to Parking Aid Control Module -J446-, REMOVING AND INSTALLING .
