Fog Lamps And Other Auxiliary Headlamps, Adjusting
NOTE:
Adjusting the headlamps is invoiced separately.

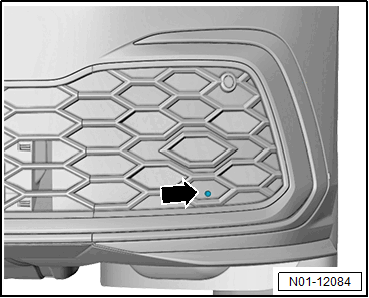

Left fog lamp in bumper
The adjusting screw on the right fog lamp is a mirror image.
Turn the adjusting screw -arrow- until the correct setting is achieved.
Lateral adjustment is not possible.
Other Auxiliary Headlamps
Retrofitted auxiliary headlamps of other systems must be checked and adjusted according to the guidelines applicable to them.
