Engine/Motor Control Module

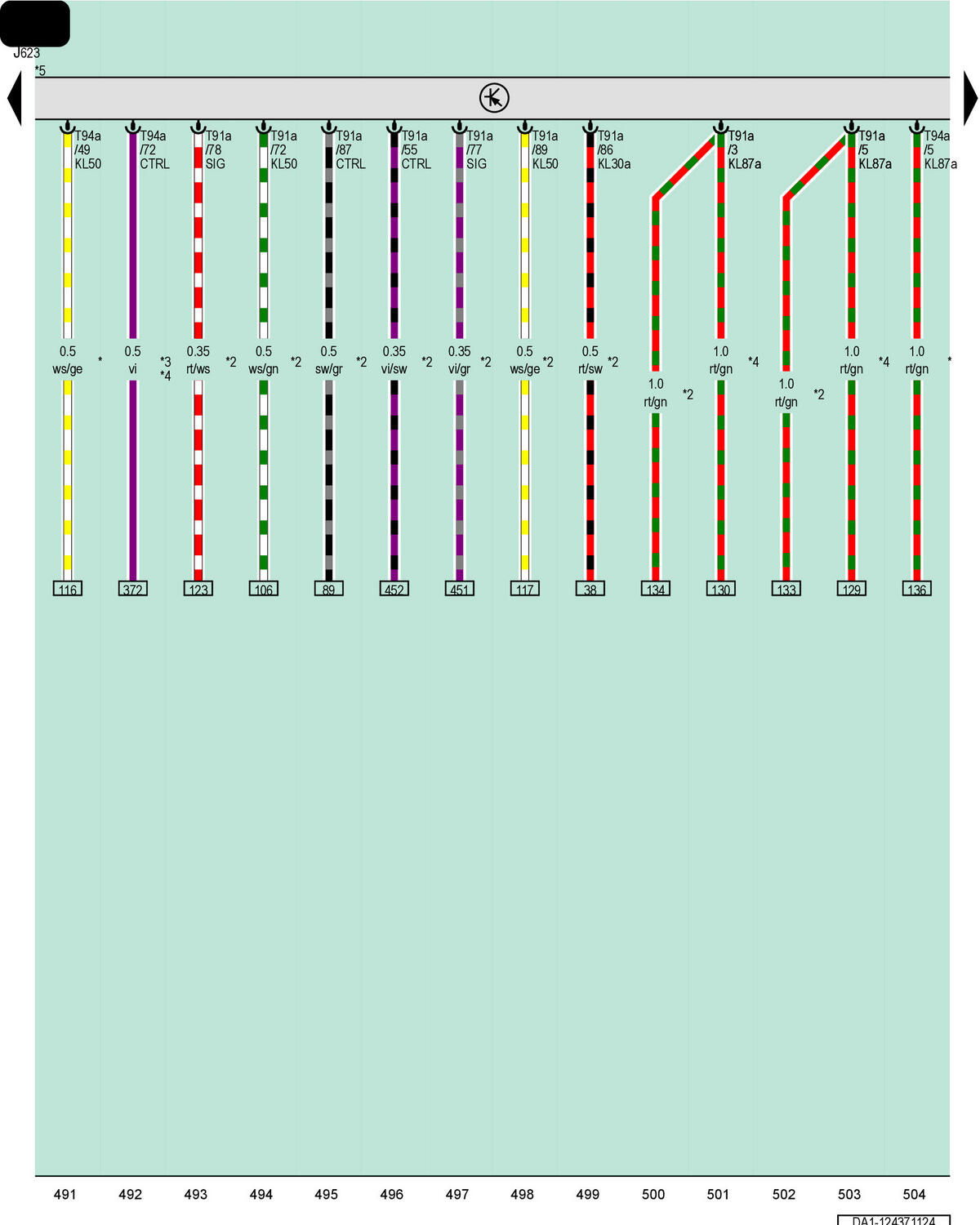

GWWDA1-124371124Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

J623

Engine/Motor Control Module

T91a

91-Pin Connector, Black

T94a

94-Pin Connector, Black

For Vehicles with Gasoline Engine

*2

For Vehicles with Diesel Engine

*3

For Vehicles with a 1.6L Engine

*4

For Vehicles with 2.0L Gasoline Engine

*5

Refer to Applicable Engine Wiring Diagram

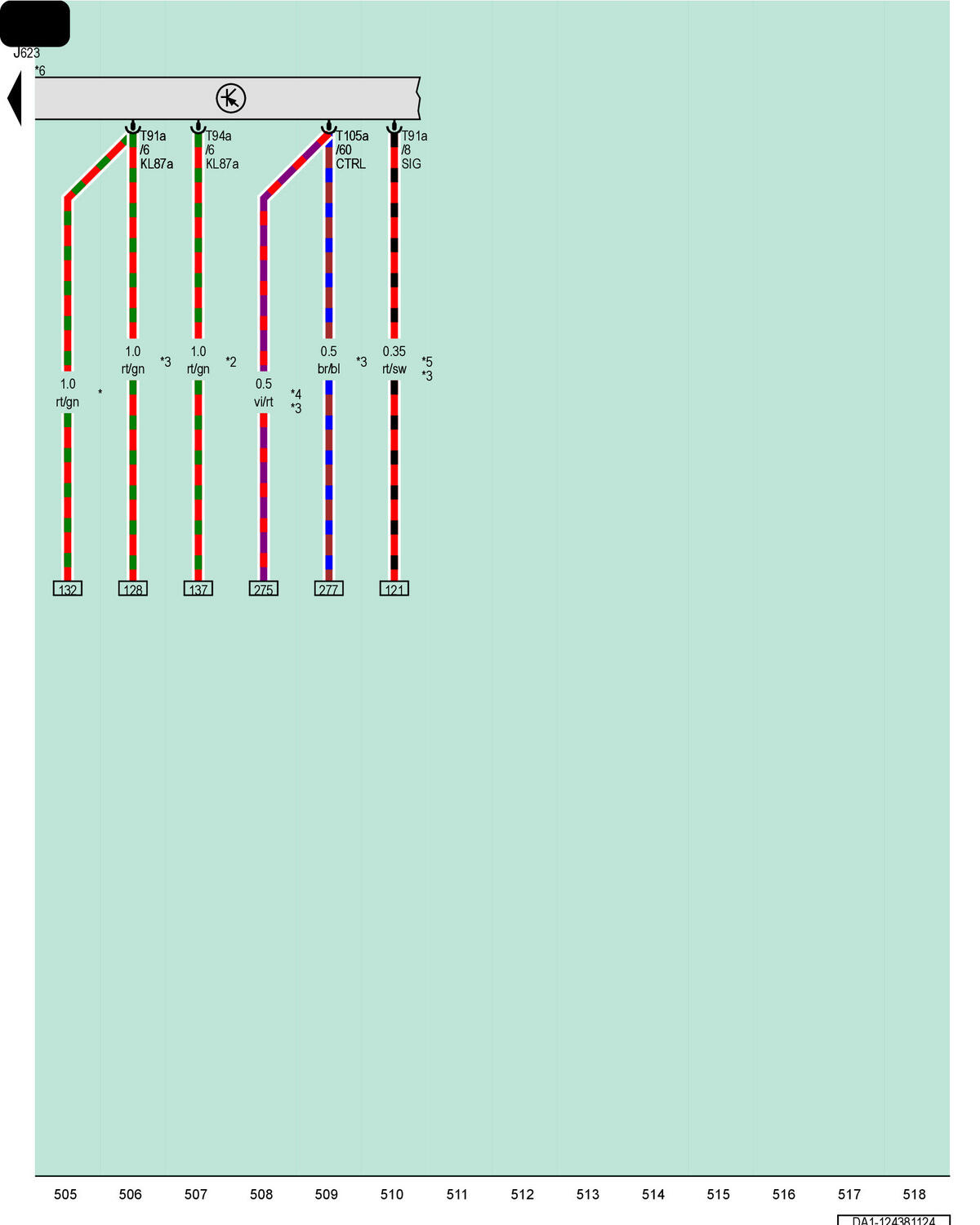

GWWDA1-124381124Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

J623

Engine/Motor Control Module

T91a

91-Pin Connector, Black

T94a

94-Pin Connector, Black

T105a

105-Pin Connector, Black

For Vehicles with Diesel Engine

*2

For Vehicles with Gasoline Engine

*3

For Vehicles with 2.0L Gasoline Engine

*4

For USA Only

*5

From April 2025

*6

Refer to Applicable Engine Wiring Diagram
