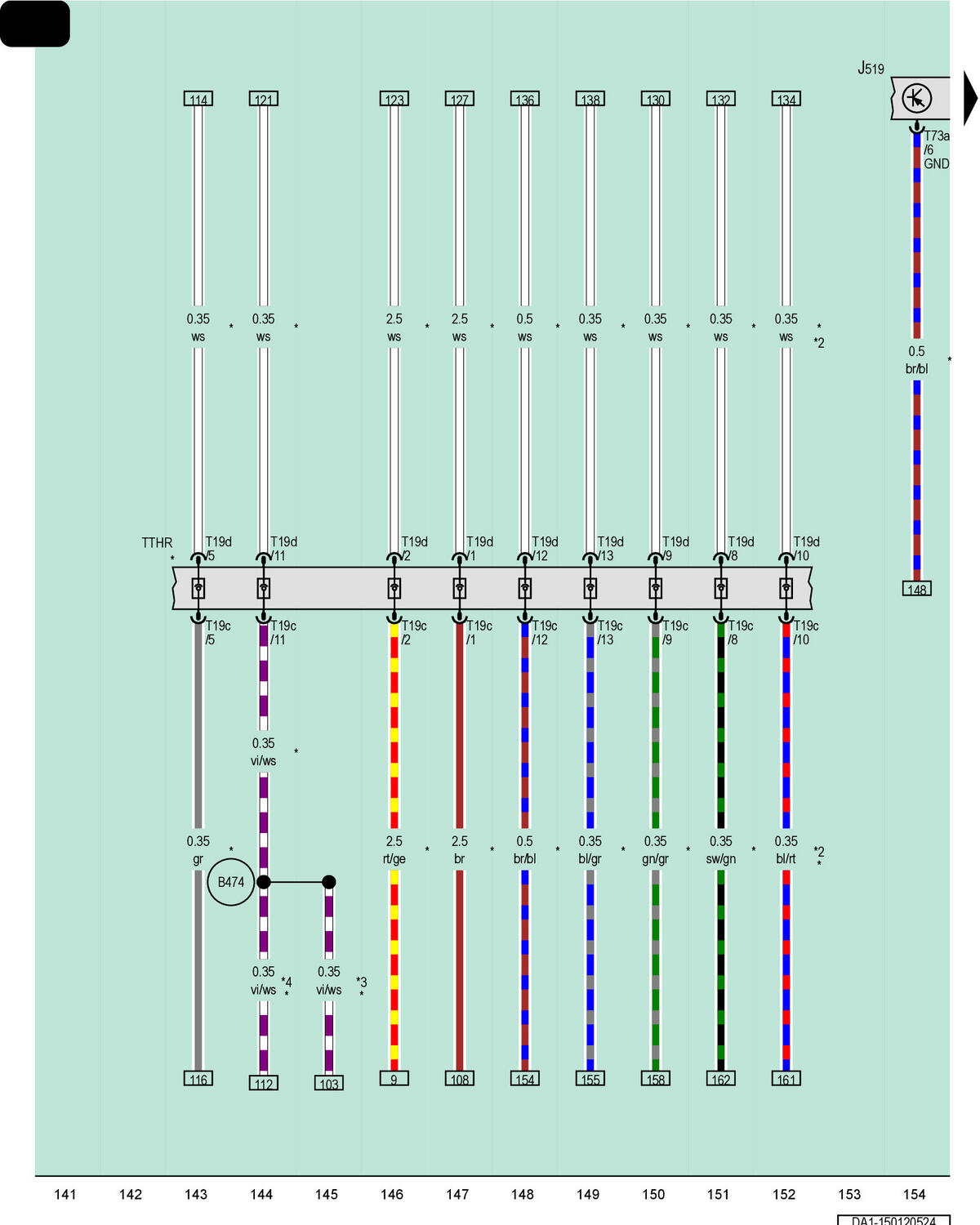

Vehicle Electrical System Control Module

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

J519

Vehicle Electrical System Control Module

T19c

19-Pin Connector, Black

T19d

19-Pin Connector, Black

T73a

73-Pin Connector, Black

TTHR

Right Rear Door Coupling Point

B474

Connection 10 (in Main Wiring Harness)

*

For LHD Vehicles

*2

For Vehicles with Safe Function

*3

For Vehicles without Peripheral Camera

*4

For Vehicles with Peripheral Camera

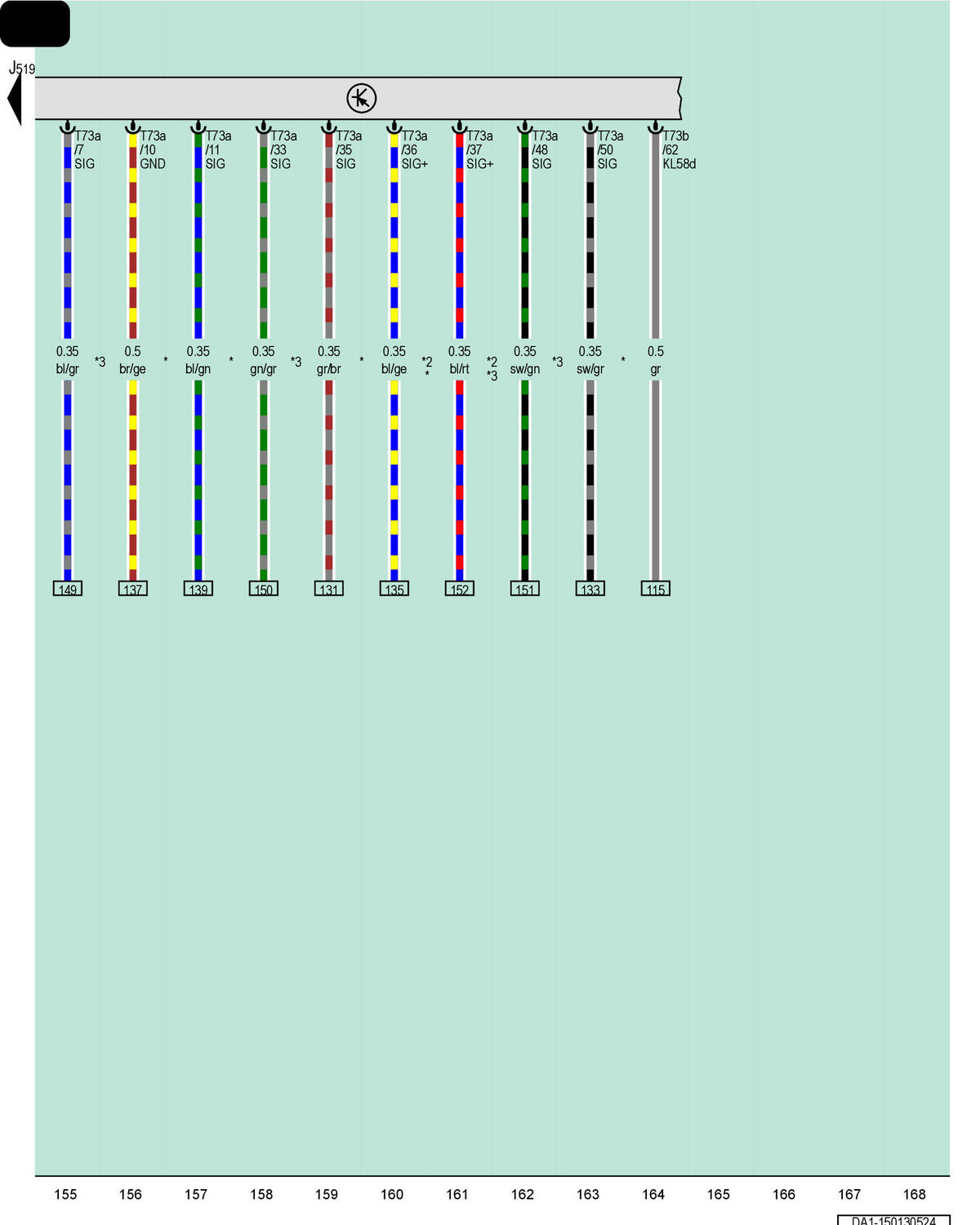

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

J519

Vehicle Electrical System Control Module

T73a

73-Pin Connector, Black

T73b

73-Pin Connector, Black

*

For RHD Vehicles

*2

For Vehicles with Safe Function

*3

For LHD Vehicles
