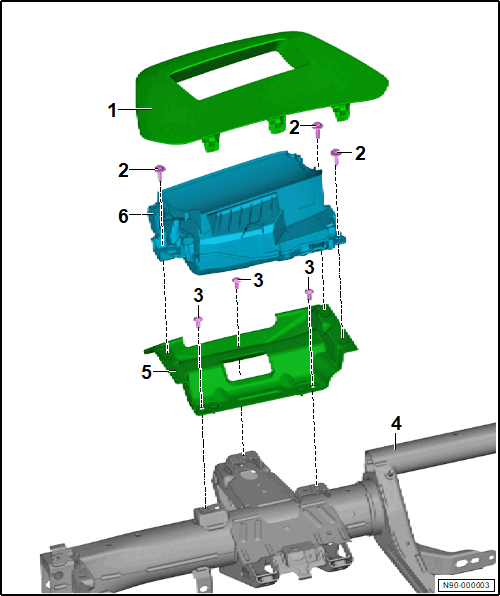

Overview - Windshield Projection (Head-Up Display)

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

1. Cover for Instrument Panel/Windshield Projection Head Up Display
   • Refer to INSTRUMENT PANEL/WINDSHIELD PROJECTION (HEAD-UP DISPLAY) COVER, REMOVING AND INSTALLING (GOLF MY 2020) , OR INSTRUMENT PANEL/WINDSHIELD PROJECTION (HEAD-UP DISPLAY) COVER, REMOVING AND INSTALLING (GOLF 2025) .
2. Bolt
   • Quantity: 3
   • 4 Nm
3. Bolt
   • Quantity: 3
   • 4 Nm
4. Instrument Panel Crossmember
   • Refer to INSTRUMENT PANEL CROSSMEMBER, REMOVING AND INSTALLING .
5. Bracket for Windshield Projection Head Up Display Control Module
   • Refer to BRACKET FOR WINDSHIELD PROJECTION HEAD UP DISPLAY CONTROL MODULE, REMOVING AND INSTALLING  .
6. Windshield Projection Head Up Display Control Module -J898-
   • Refer to WINDSHIELD PROJECTION HEAD UP DISPLAY CONTROL MODULE J898, REMOVING AND INSTALLING  .
