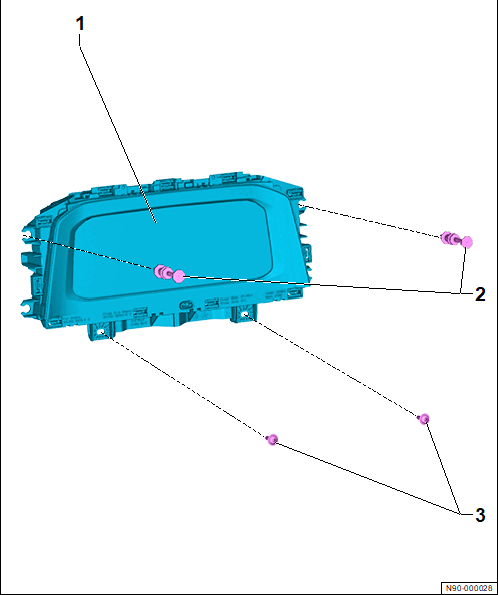

Overview - Instrument Cluster

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Instrument Cluster -KX2-
- Depending on equipment/version
- With Instrument Cluster Control Module -J285-
- with Airbag Indicator Lamp -K75-
- Refer to Instrument Cluster -KX2-, REMOVING AND INSTALLING .
Expanding Rivet
- Quantity: 2
Bolt
- Quantity: 2
- 1.5 Nm
