Test And Adjustment Values

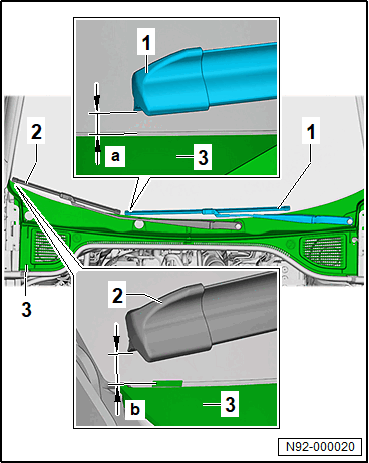

Wiper Arms (Front)

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Distance	Adjustment value
Driver side -a-	10 mm ^{+10 mm} /_{-0 mm}
Front Passenger Side -b-	10 mm ^{+10 mm} /_{-0 mm}

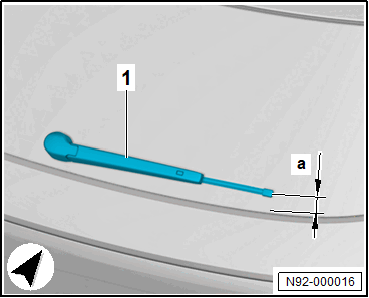

Wiper Arms (Rear)

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Distance	Adjustment value
-a- Golf	31 mm ^{+5 mm} /_{-5 mm}
-a- Golf Wagon	33 mm ^+5mm /_{-5 mm}
