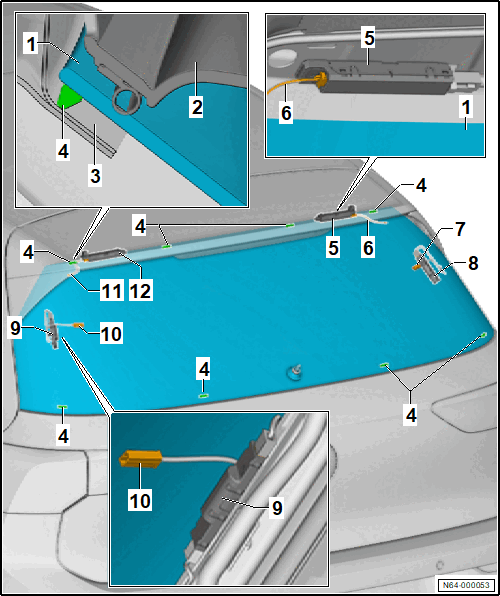

Overview - Rear Window

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Rear Window -ZX1-
- With Rear Window Defogger -Z1-
- Refer to Rear Window, Removing and Installing .
- Refer to DAMAGED WINDOW GLASS, REMOVING
Spoiler
- Refer to Overview - Spoiler .
- Refer to Spoiler, Removing and Installing .
Body Flange
Spacer
- Quantity: 8
Antenna Module
- Refer to COMPONENT LOCATION OVERVIEW - COMPONENTS/CONTROL MODULES IN REAR SECTION OF VEHICLE .
Window Antenna Connector
- Negative wire
Connector for Rear Window Defogger -Z1-
- Negative wire
FM Frequency Filter in Negative Wire - R178-
FM Frequency Filter in Positive Wire - R179-
Connector for Rear Window Defogger -Z1-
- Positive Cable
Window Antenna Connector
- Positive Cable
Antenna Module
- Refer to COMPONENT LOCATION OVERVIEW - COMPONENTS/CONTROL MODULES IN REAR SECTION OF VEHICLE .
